Description

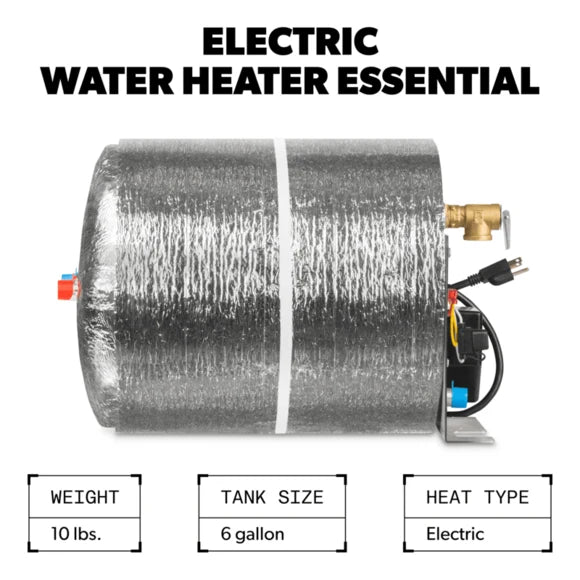

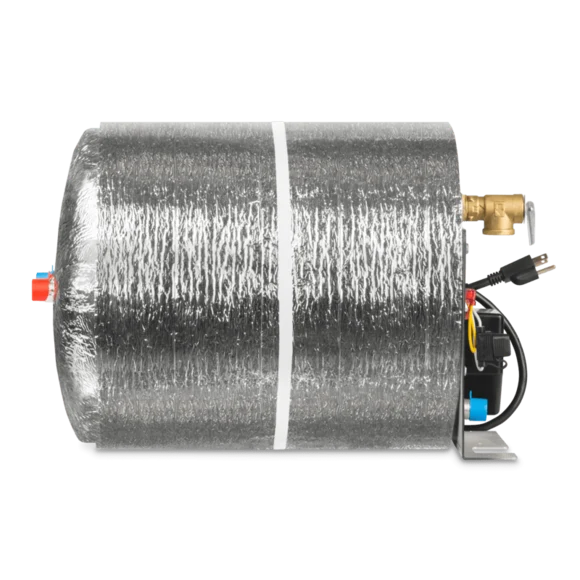

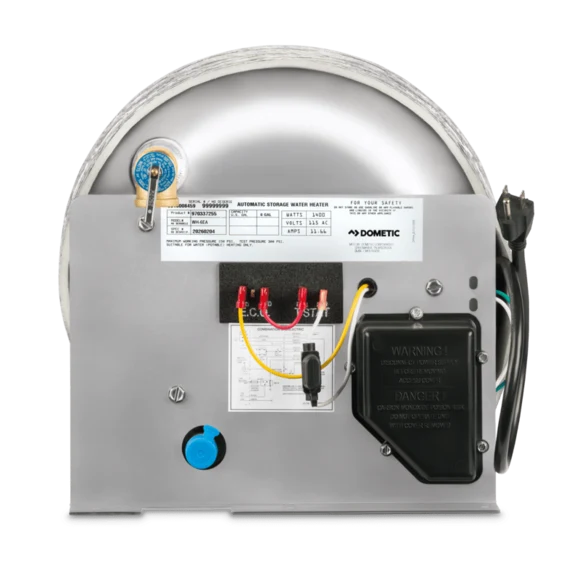

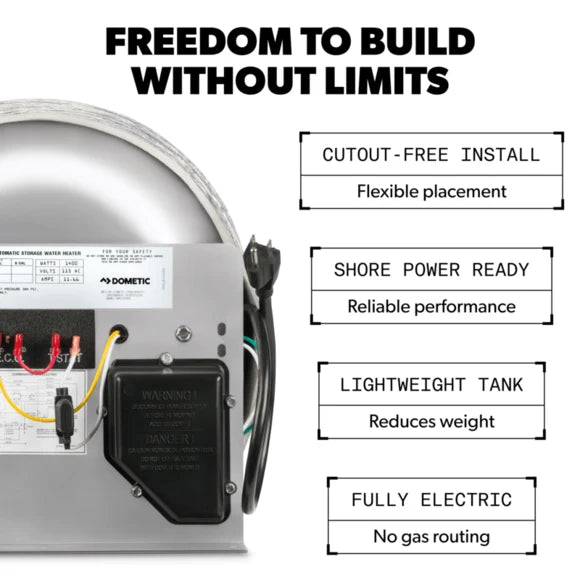

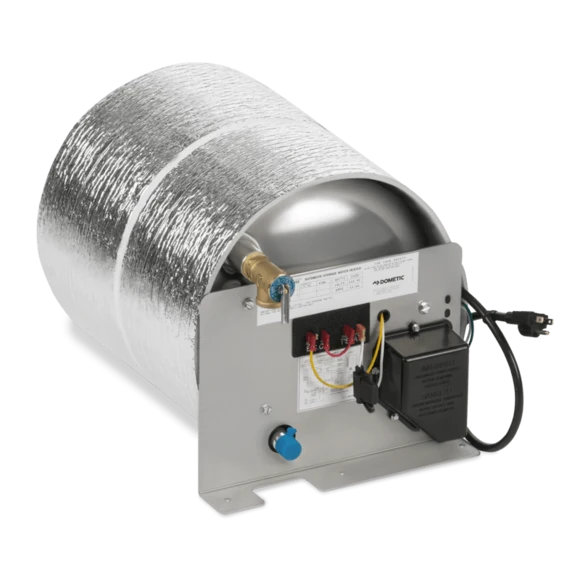

The Dometic 9610008459 WH-6EA is a 6-gallon electric RV water heater designed as a compact replacement option for compatible RV water-heater installations. It uses a 1,400-watt electric heating element and features an aluminum tank with insulation for dependable hot-water storage.

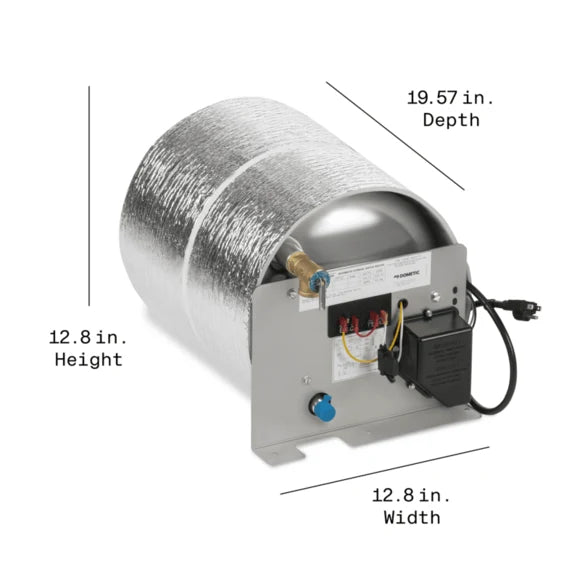

Measuring approximately 12.8" high x 12.75" wide x 19.5" deep, the WH-6EA can replace select older Atwood and Dometic water heaters, although a conversion access-door kit and control-switch changes may be required depending on the existing installation.
Features
- 6-gallon hot water capacity
- Electric RV water heater
- 1,400-watt heating element
- Aluminum water tank
- Insulated tank design
- Non-portable installation
- 3-prong electrical plug
- Compact RV installation dimensions
- Designed for compatible Dometic and replacement RV water-heater applications
Specifications
- Brand: Dometic
- Manufacturer Part Number: 9610008459
- Model: WH-6EA
- Product Type: RV Water Heater
- Type: Electric
- Capacity: 6 Gallons
- Wattage: 1,400W
- Width: 12-3/4"
- Height: 12.8"
- Depth: 19-1/2"
- Tank Material: Aluminum
- Insulated: Yes
- Electrical Connection: 3-Prong Plug
- Switch Included: No
- Access Door Included: No
- Indicator Light Included: No
- Mounting Hardware Included: No
- Portable: No
- Marine: No
- Condition: Brand New
- Product: Genuine Dometic Product
Compatibility & Replacement Information
The WH-6EA can be used in compatible RV water-heater installations and as a replacement for select older Atwood and Dometic water heaters.
When replacing an older water heater, carefully compare the existing opening and installation requirements. Due to dimensional differences, a conversion access-door kit may be required.
A dual wall switch may also be required when replacing an older water heater that currently uses a single-switch configuration.
Important
- Access door is sold separately
- Wall switch is not included
- Conversion access-door kit may be required for some older Atwood/Dometic installations
- Dual wall switch may be required for certain replacement installations
- Mounting hardware is not included
- Verify dimensions and installation requirements before ordering
- Professional installation by a qualified RV technician is recommende
