Description

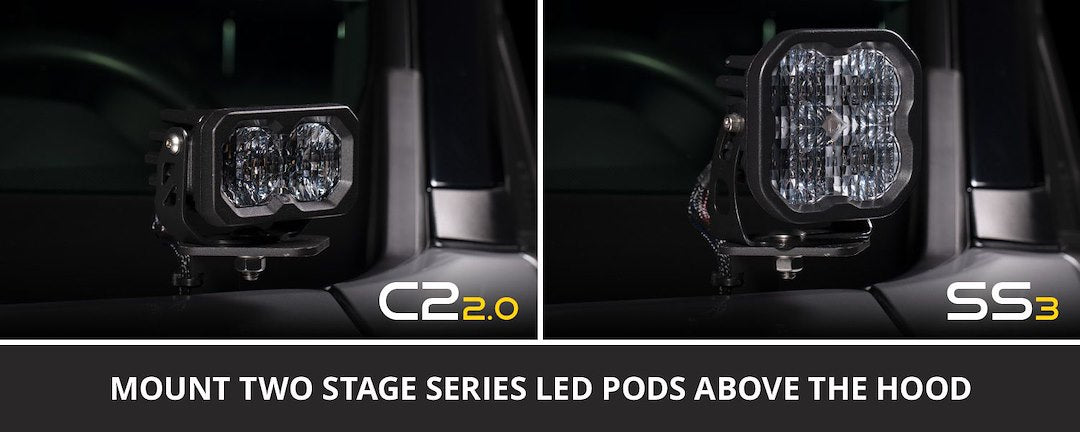

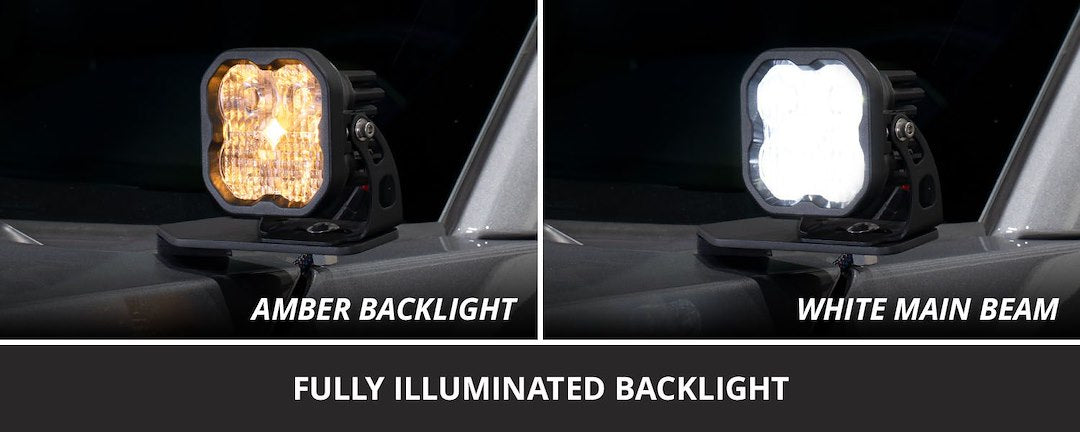

A wide, smoothly blended driving-and-flood pattern gives these above-hood lights an 80-by-30-degree spread. DD7558 includes two white Stage Series SS3 pods, each with a separate amber backlight that illuminates the TIR optic as an accent.
Vehicle-specific brackets attach at the factory hood-hinge mounting points without cutting or drilling. Their low profile helps minimise glare and leaves the hood free to open and close normally. The included harness can connect the backlight to the chosen vehicle function.

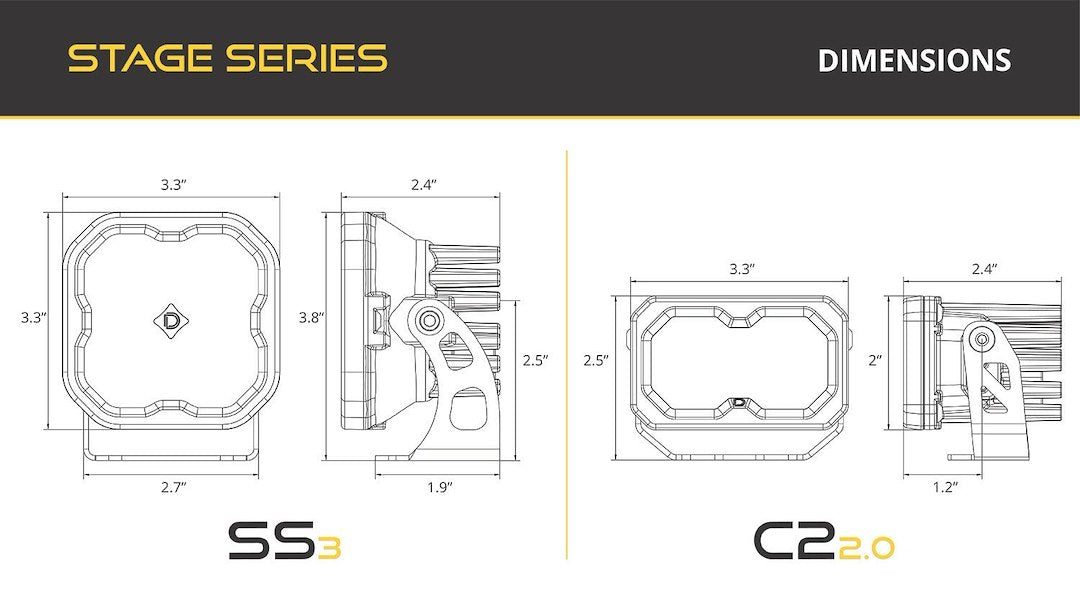

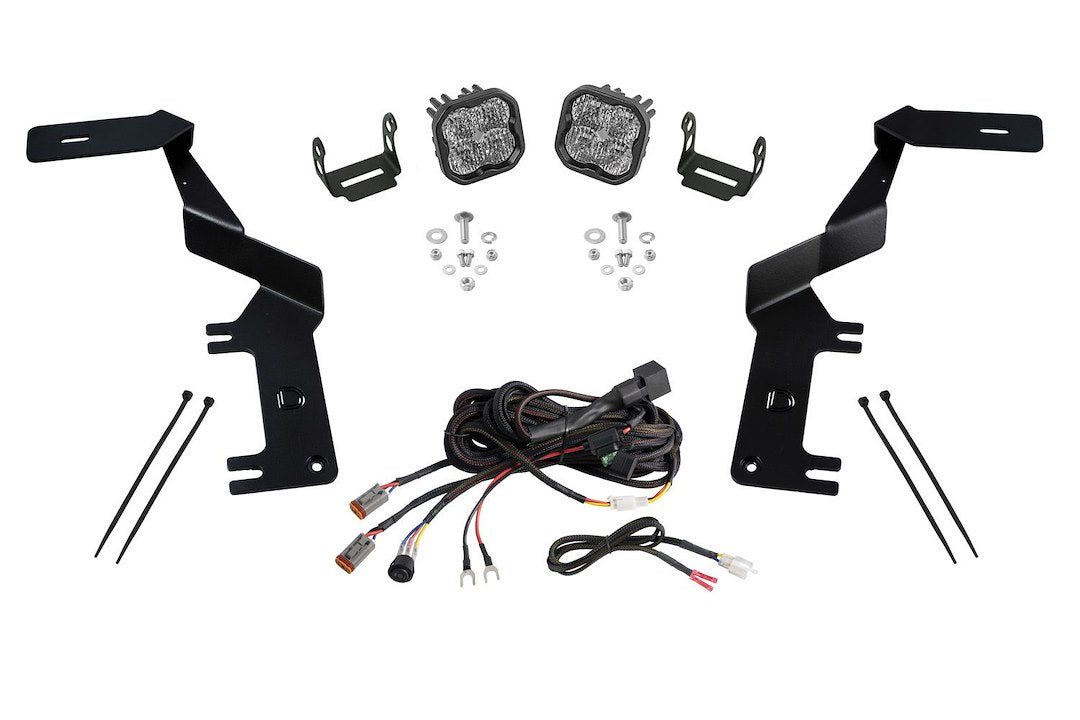

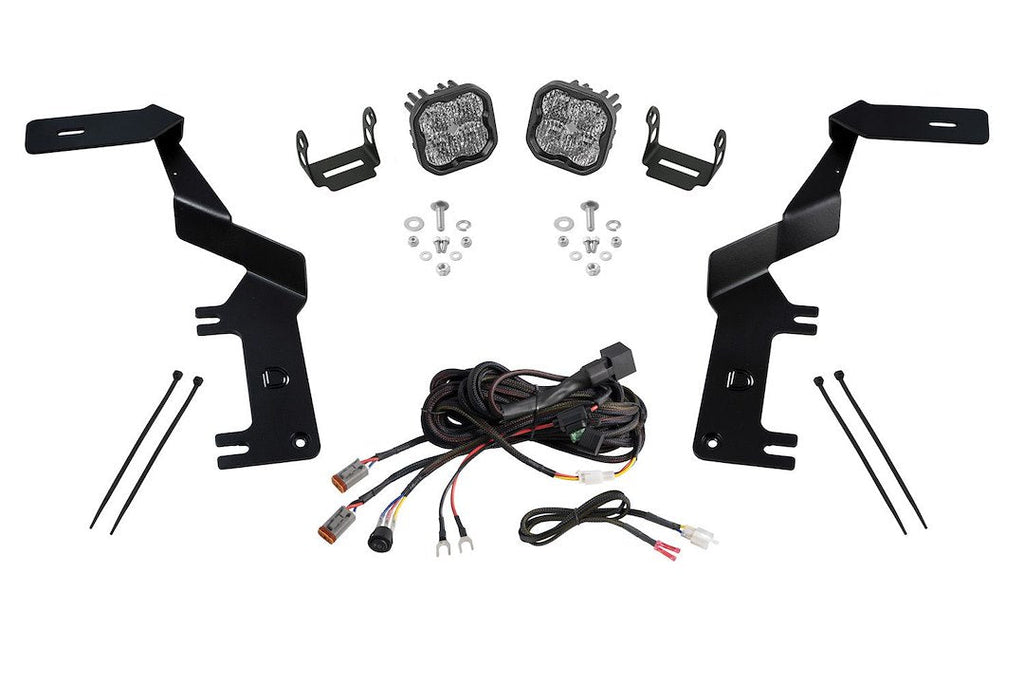

The 3-by-3-inch pods use TIR optics to concentrate light into the intended pattern. Black cast-aluminum housings and polycarbonate lenses are IP69K rated. The listed output is 5,796 lumens at 36 watts, and the kit contains two ditch-light brackets, wiring and mounting hardware. The remaining electrical and installation specifications are shown below.
Specifications
| Estimated Install Time (Hours) | 1.5 |
| Voltage Rating | 13.2 Volt |
| Ampere Rating At 12 Volts | 2.7 Amp |
| Height/ Width | 3 Inch Height X 3 Inch Width |
| Wattage | 36 Watt |
| Lumens | 5796 Lumens |
| Housing Color | Black |
| Mounting Style | Bolt-On To Hood Hinge |
| Housing Material | Cast Aluminum |
| Bulb Specifications | Clear Lumileds Automotive Grade LED Bulb |
| Beam Type | Combo Beam Driving And Flood |
| Waterproof Rating | IP69K Rated |
| Bulb Type | LED |
| Diameter | Not Applicable |
| Lens Material | Polycarbonate |
| Quantity | Set Of 2 |
| Shape | Square |
| Universality | Vehicle Specific |
| Light Color | White |
| Includes | With 2 Ditch Light Brackets/ Wiring Harness/ Mounting Hardware |
