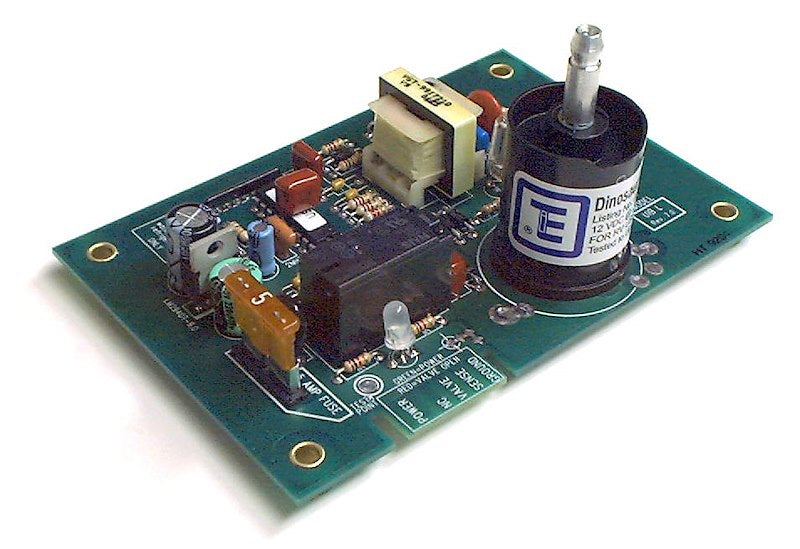

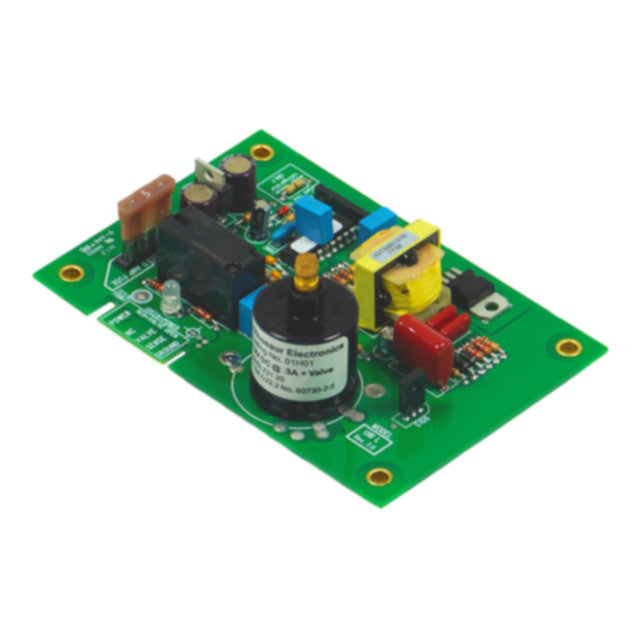

Dinosaur Electronics UIB L POST Universal 12V DC Ignition Control Circuit Board

Save $57.00
DinosaurSKU: 39-0415

Price:
Sale price$178.00 Regular price$235.00

Shipping calculated at checkout

Stock:
In stock (17 units), ready to be shipped

Description

This is a new Dinosaur Electronics UIB L POST Universal 12 Volt DC Ignition Control Circuit Board, designed for use in select RV furnaces and water heaters.

The UIB L POST ignitor board is a universal 12V DC replacement module compatible with Coleman, Duo-Therm, Hydro-Flame, and Suburban furnaces, as well as Atwood, Mor-Flo, and Suburban water heaters. Electrically identical across applications but mechanically configured for convenient installation, this board offers dependable ignition control in RV systems.

Certified by Testing Engineers International to meet UL 372 and UL 353 specifications, this rugged control board utilizes double-sided plated thru-hole technology for enhanced durability and reliability. It features built-in fuse and surge protection to safeguard against short circuits in NC and valve circuitry.

A two-color diagnostic LED provides system monitoring:

  • Green indicates power to the board

  • Red indicates power to the gas valve

This micro-controlled board operates on a delayed 3-try ignition sequence with 20-second purge cycles and local flame sense. A removable jumper allows conversion to instant fire mode (for water heaters and refrigerators only), with a one-minute purge cycle between ignition attempts.


Replaces Control Board Numbers

  • 61525022

  • 61549522

  • FA7615

  • MPD91731


Compatible Applications

Suburban Furnace Models (12V DC):

  • NT16FC

  • NT22FCD

  • NT30SP

Also compatible with various Coleman, Duo-Therm, Hydro-Flame, Atwood, Mor-Flo, and Suburban furnace and water heater systems using 12V DC ignition boards.


Key Specifications

  • Manufacturer: Dinosaur Electronics

  • Manufacturer Part Number: UIB L POST

  • Product Type: Universal Ignition Control Circuit Board

  • Voltage: 12 Volt DC

  • Length: 4-1/4 Inches

  • Width: 3-1/4 Inches

  • With Protective Cover: Yes

  • Connector Type: Post Spark Lead Connectors

  • Protection: Fuse and Surge Protected


Features & Benefits

  • Universal 12V DC Ignition Replacement Board

  • UL 372 and UL 353 Certified

  • Two-Color Diagnostic LED (Green/Red)

  • Micro-Controlled with 3-Try Ignition Sequence

  • 20-Second Purge Cycle with Local Flame Sense

  • Removable Jumper for Instant Fire Mode (Water Heater/Refrigerator Use Only)

  • Double-Sided Plated Thru-Hole Construction for Durability

  • Built-In Fuse and Surge Protection

  • Limited 3-Year Manufacturer Warranty
