Description
Brand: Coleman Mach
Product Line: Mach 3 Plus
Manufacturer Part Number: 38203-0660
Mounting Size: Fits 14 Inch x 14 Inch Rooftop Vent Openings
Cooling Capacity: 13500 BTU
System Type: Ducted or Non-Ducted
Cooling Type: Evaporative Cooling
Function: Air Conditioner Only
Color: Textured White
Voltage Rating: 120 Volt
Compressor Draw: 12.8 Amp
Amp Rating: 13 Amp
Airflow: 320 CFM
Height: Medium Profile - 13.8 Inch
Width: 26.1 Inch
Length: 38 Inch
Weight: 79.5 Pounds
Heat Pump: No
Condensate Pump: No
Remote Control: No
Zone Control Board: Not Included
Marine Approved: No
Condition: New
Features & Benefits
- Powerful 13,500 BTU rooftop RV air conditioner
- Compatible with ducted and non-ducted RV systems
- Large evaporator and condenser coils for efficient heat dissipation
- Raised lance fin coil design improves cooling efficiency
- Delivers strong 320 CFM airflow performance
- All-copper tubing and gas-flux brazed joints for durability and long service life
- Optional heater assembly available for supplemental heating
- Medium-profile rooftop design for dependable RV cooling
- Assembled in America
- Backed by over 55 years of Coleman-Mach climate control expertise
Product Description

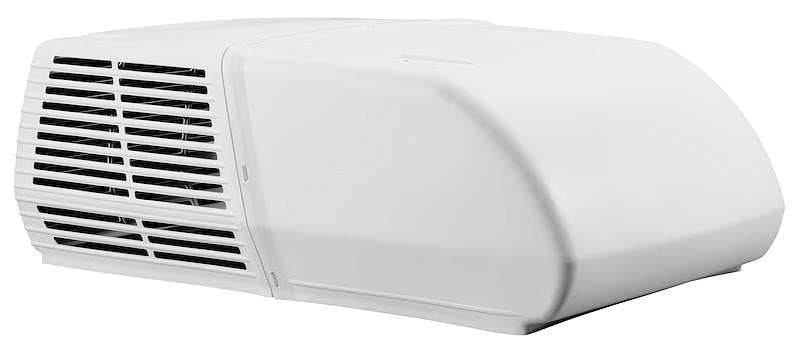

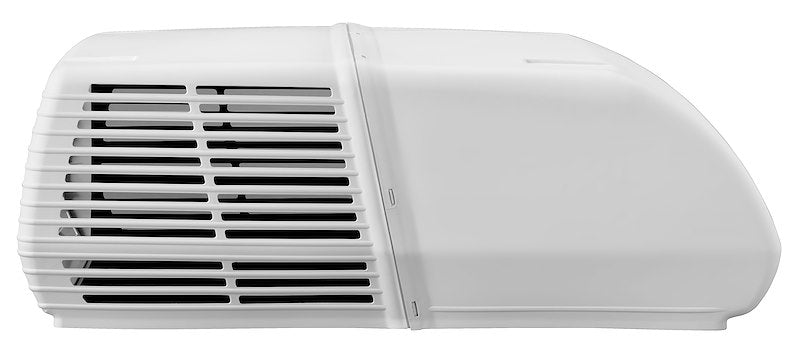

The Coleman Mach 3 Plus Rooftop RV Air Conditioner delivers dependable cooling performance and long-lasting durability for a wide range of RV applications. Featuring 13,500 BTU of cooling capacity and strong 320 CFM airflow, this rooftop air conditioner is engineered to provide efficient interior comfort for RVs, campers, trailers, and specialty vehicles.
Designed for both ducted and non-ducted RV systems, the Mach 3 Plus fits standard 14 Inch x 14 Inch rooftop vent openings and offers flexible installation compatibility for both replacement and new installations.
The Mach 3 Plus utilizes large evaporator and condenser coils with raised lance fins to improve heat dissipation and cooling efficiency. Its all-copper tubing and gas-flux brazed joints are engineered for superior durability and long service life under demanding travel conditions.
This rooftop air conditioner is also compatible with an optional heater assembly, allowing users to add approximately 5,600 BTU of supplemental electric heat for cooler weather camping conditions.
Coleman-Mach has been a trusted leader in RV climate control since introducing the first RV air conditioner in 1967. The Mach 3 Plus continues that tradition with reliable performance, durable construction, and proven cooling capability.
Please note that both the ceiling assembly and thermostat must be ordered separately.
Compatibility Notes
- Fits standard 14 Inch x 14 Inch rooftop vent openings
- Compatible with ducted and non-ducted RV systems
- Ceiling assembly sold separately
- Thermostat sold separately
- Optional heater assembly available separately
Important Notes
- AC-only model — no heat pump included
- Optional heater strip available separately
- Zone control electronic board not included
- Remote control not included
- Condensate pump not included
- Professional installation recommended
Warranty
Limited 2 Year Warranty
