Bob's Machine 100-406000-NOPC Fixed 6-Inch Setback Brackets

Save $169.00
Bobs Machine MPN: 100406000N

Price:
Sale price$513.00 Regular price$682.00

Shipping calculated at checkout

Stock:
In stock (21 units), ready to be shipped

Description

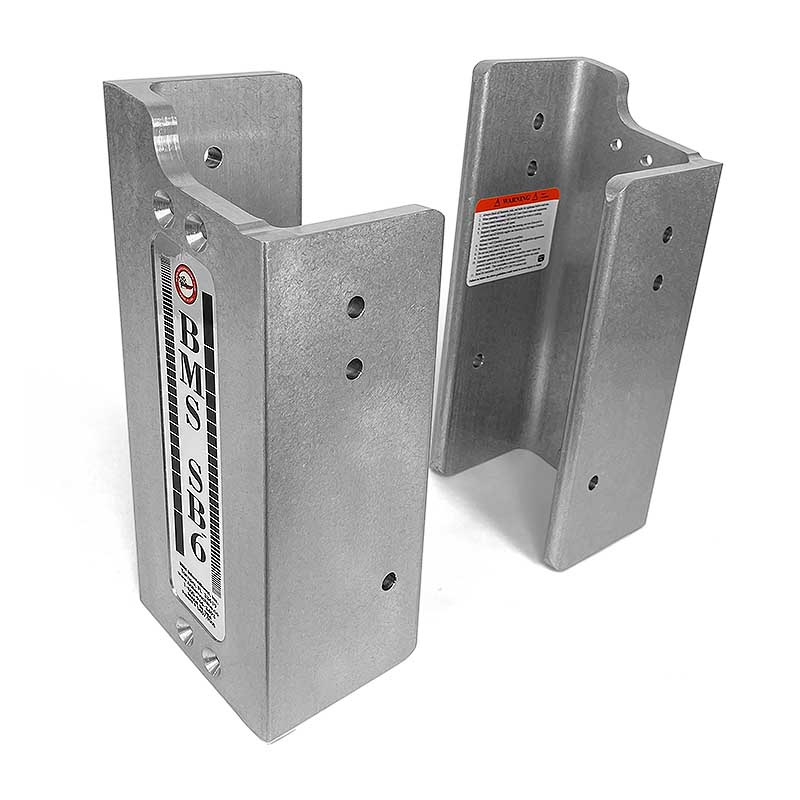

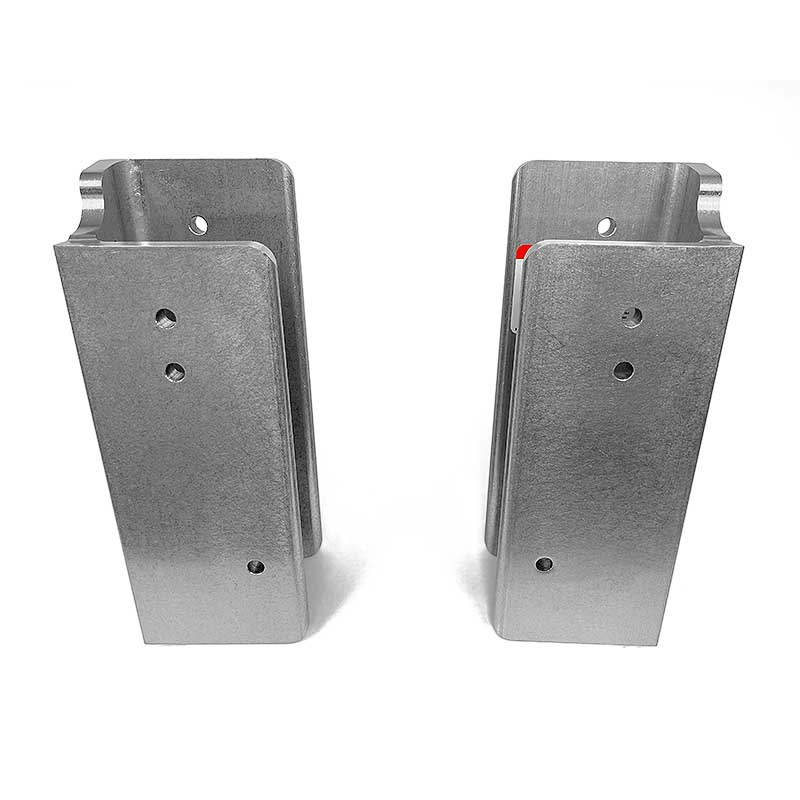

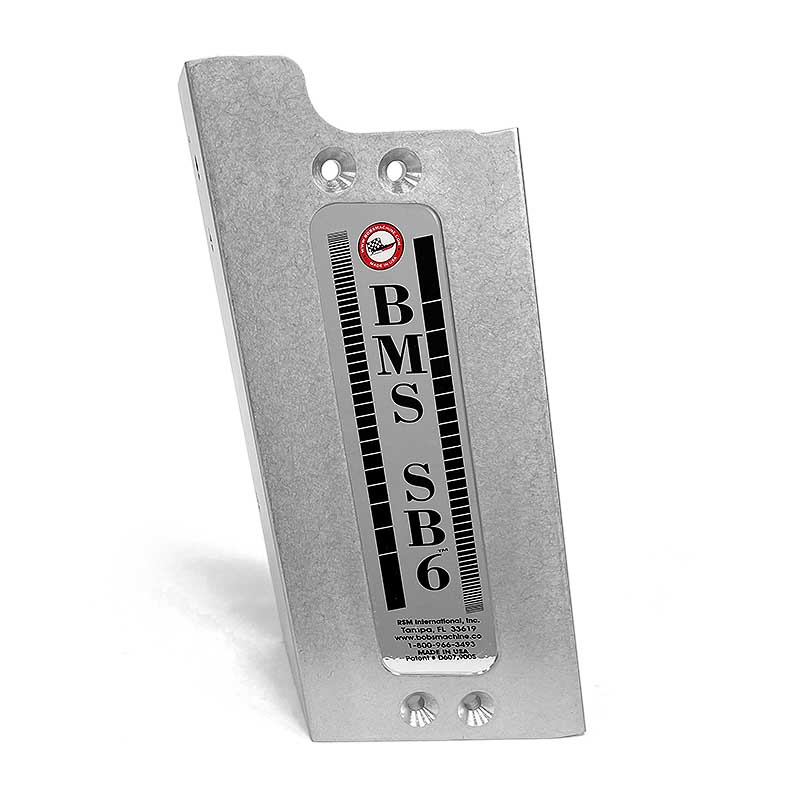

These fixed brackets move the outboard 6 inches aft of the transom and provide 1-1/2 inches of rise. The bare silver brackets are made from 5/8-inch-thick 6061-T6 aluminum and are rated for engines up to 550 horsepower.

Mounting provisions

The brackets use the standard BIA bolt pattern and mount in the transom’s existing holes. The motor is removed, the brackets installed, and the motor remounted on the brackets. Two sets of mounting holes provide different engine-height positions. The brackets are also predrilled for shallow-water anchors and optional rigid crossbars.

One-piece bracket requirement

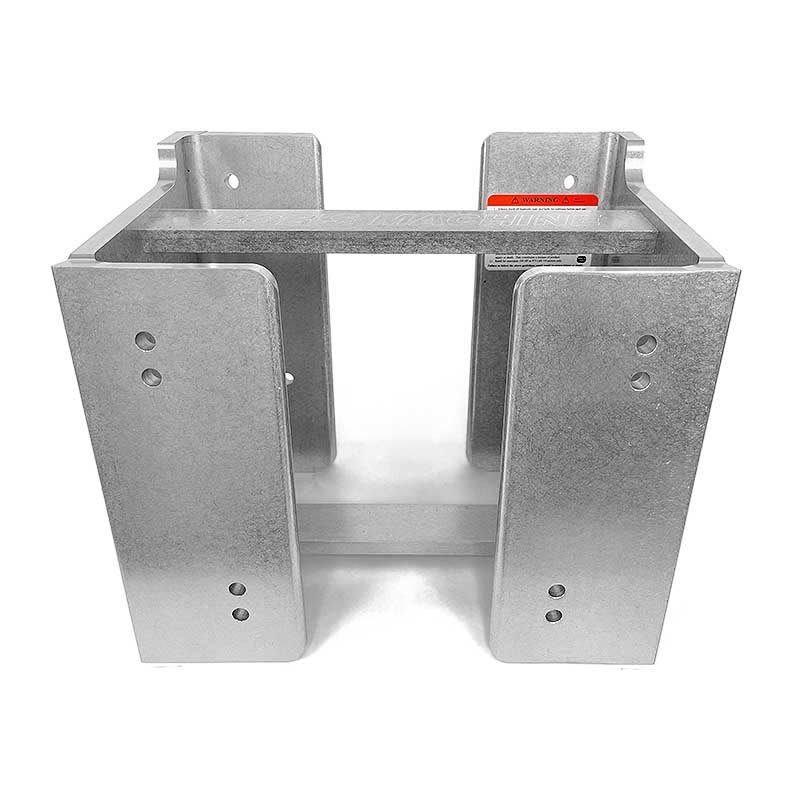

Some motor brands require a one-piece setback bracket. In that situation, the additional rigid crossbars are required. The available information does not identify which motor brands have that requirement.

Specifications

Total Rise 1-1/2 Inch
Maximum Horsepower 550 Horsepower
Setback 6 Inch
Material Aluminum
Finish Bare
Adjustment Type Fixed
With Relay Harness No
With Rocker Switch No
Adjustment Rise Not Applicable
Color Silver
