Description

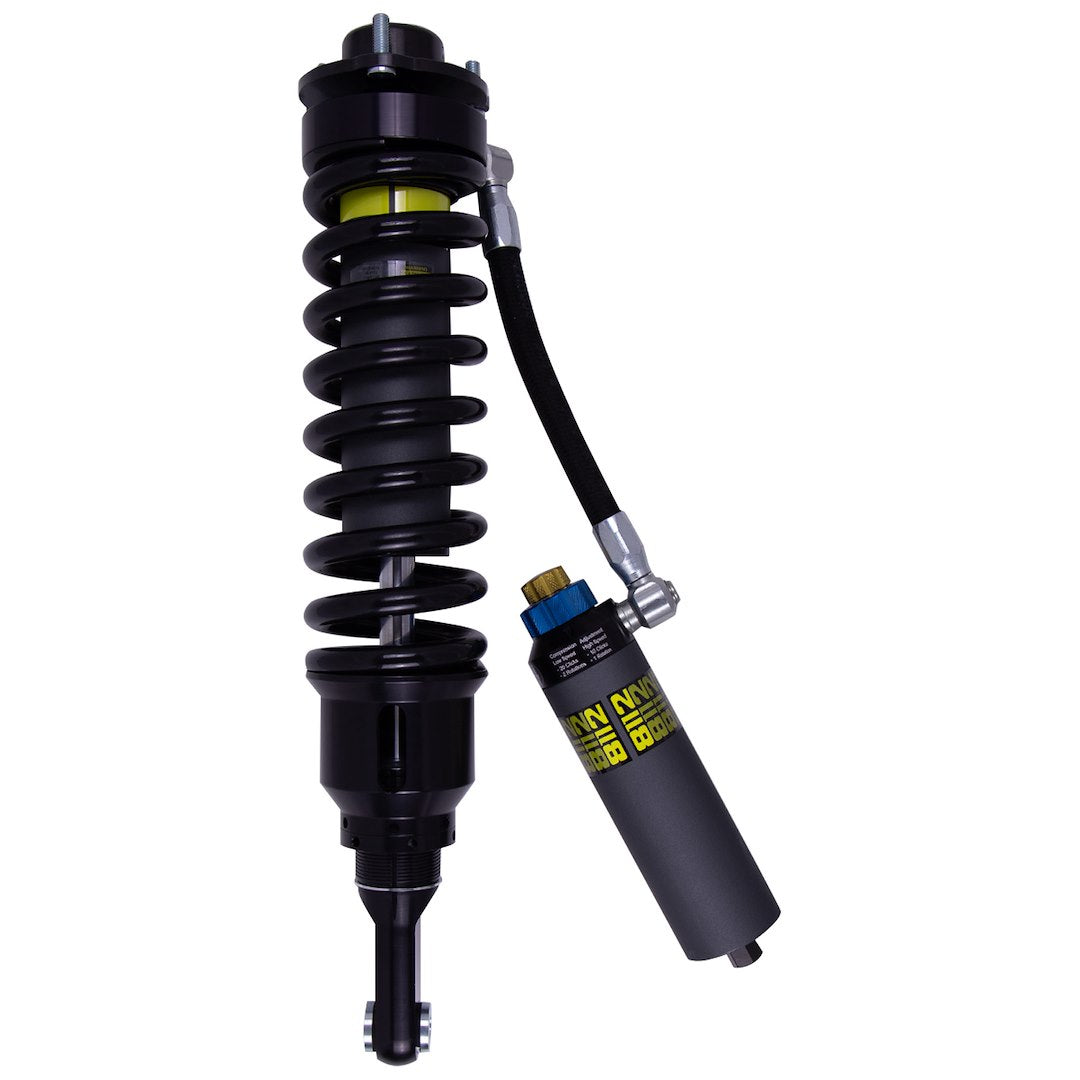

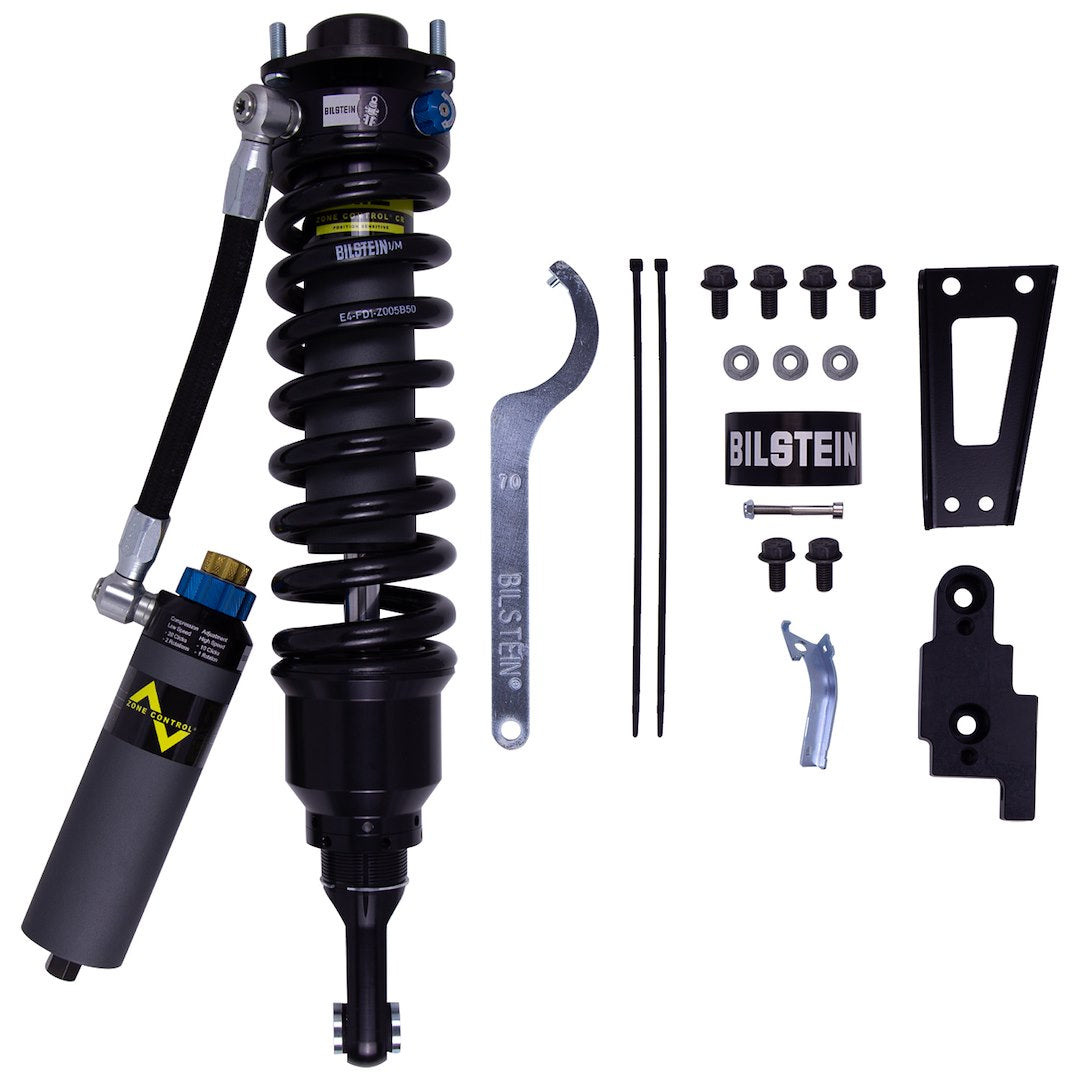

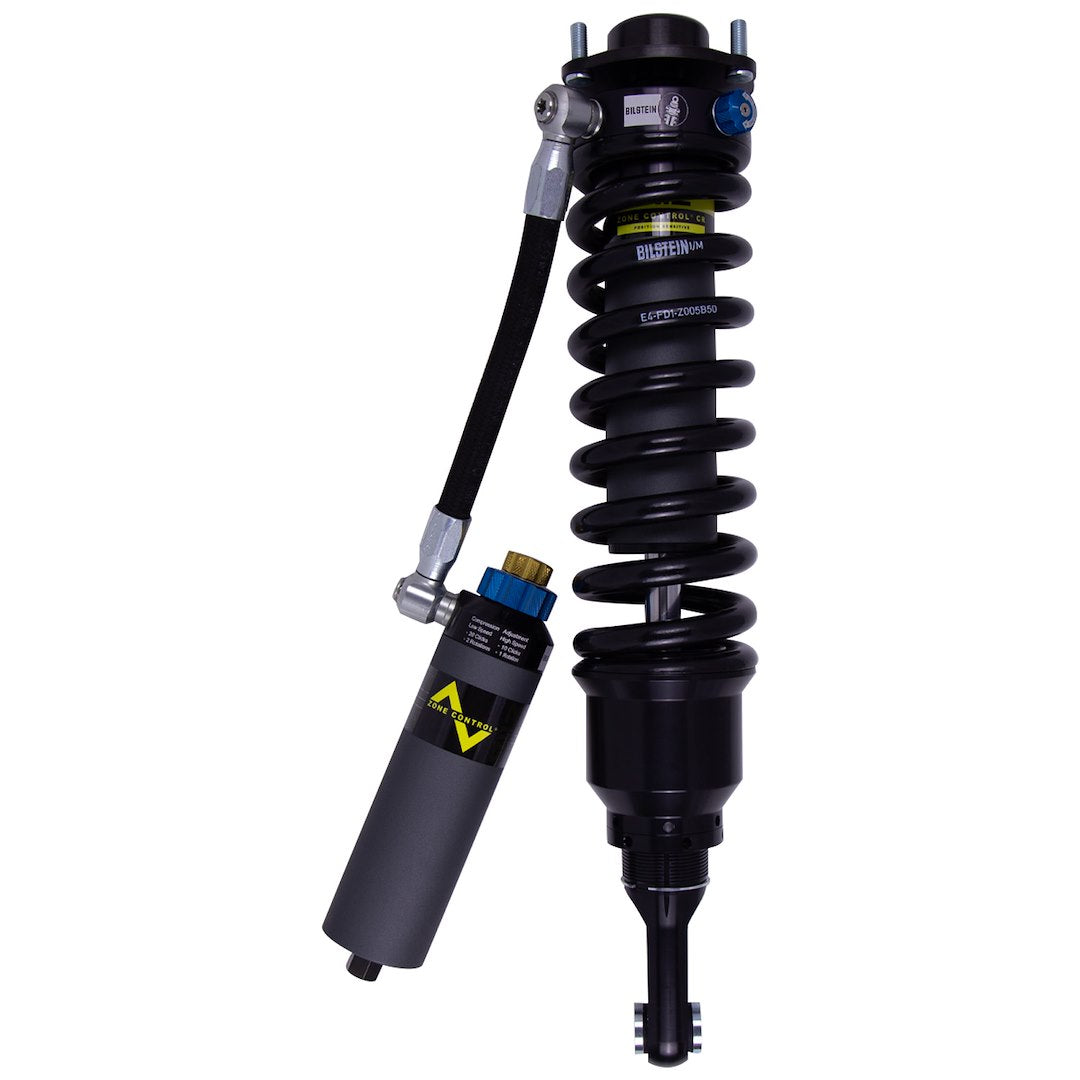

Bilstein 41-319574 is the left-hand front B8 8112 ZoneControl CR DSA+ coilover module for specified Toyota Tacomas. It combines a remote-reservoir monotube damper with its own coil spring and high/low-speed compression adjusters, so it is not a spring-only set or a conventional non-adjustable 5100 shock.

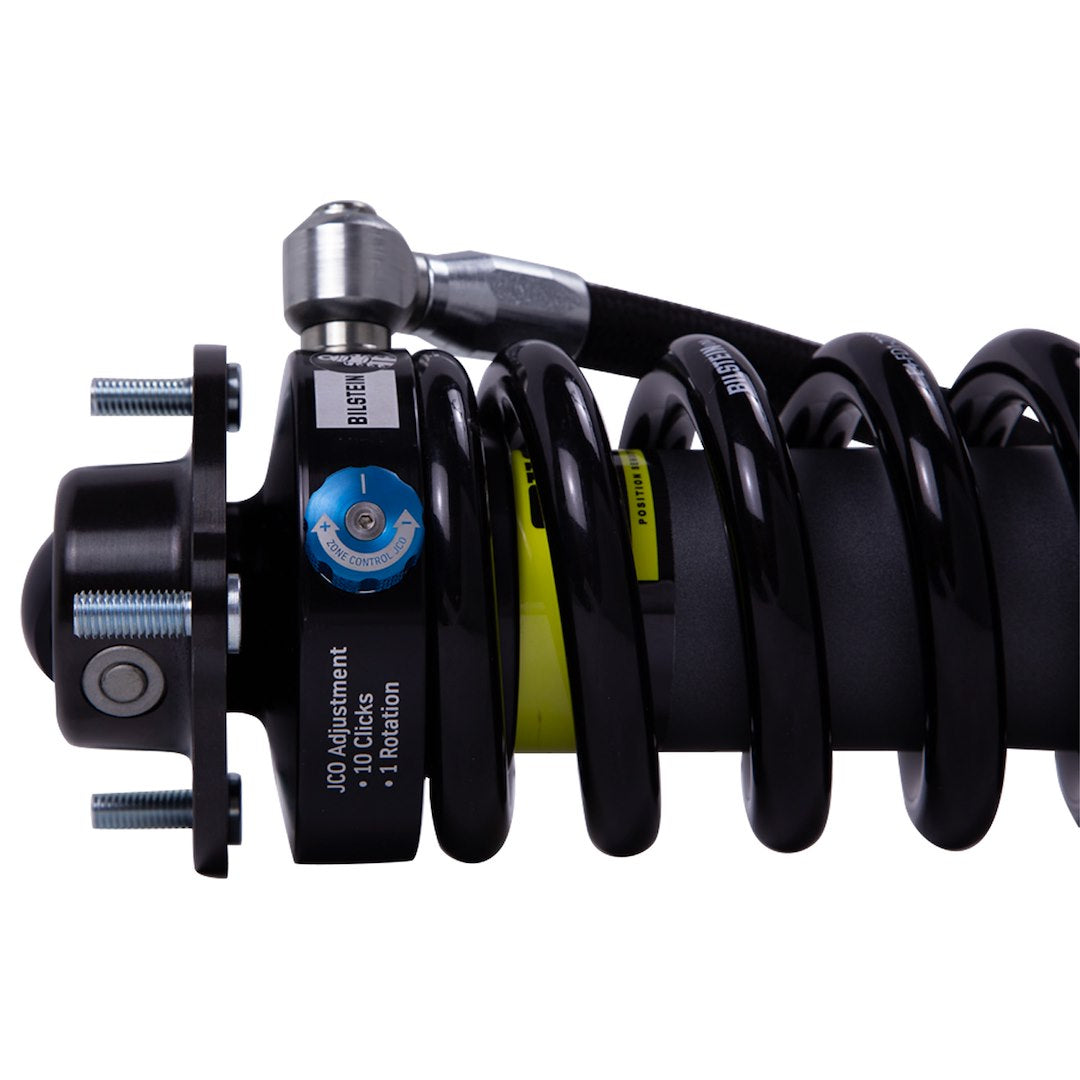

The left module includes a threaded spring seat, internal hydraulic bump stop and a 600 lb/in front spring. Bilstein explicitly calls for aftermarket upper control arms on the listed Tacoma applications. Follow the year and drivetrain-specific lift heights in the fitment chart rather than applying the advertised adjustment range as a guaranteed lift on every trim.
Specifications
| Manufacturer MPN | 41-319574 |
|---|---|
| Side | Front left |
| Series | B8 8112 ZoneControl CR DSA+ |
| Collapsed / extended | 17.43 / 22.39 in. |
| Spring rate | 600 lb/in |
| Damper body | 2.65 in. monotube with remote reservoir |

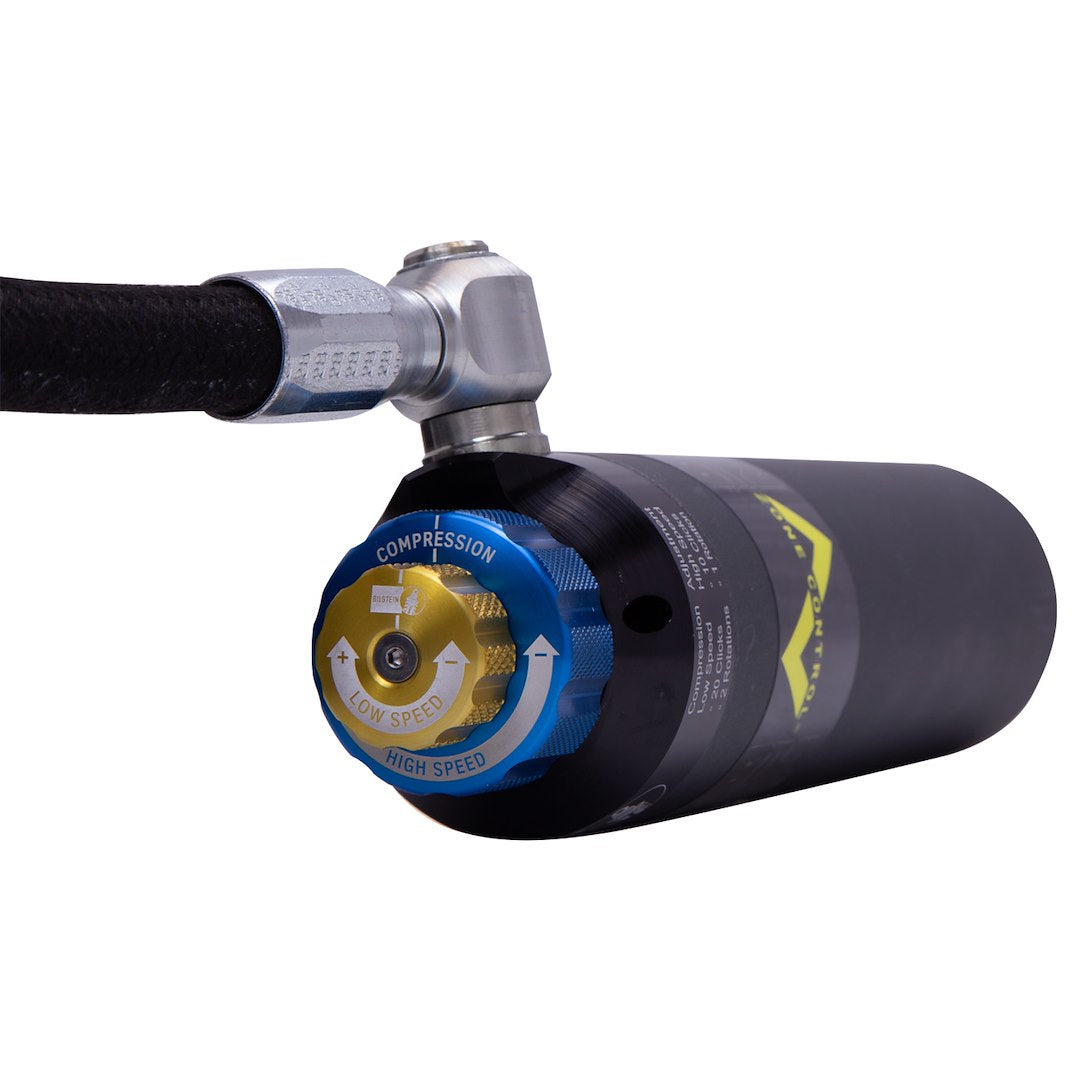

| Adjustability | High- and low-speed compression; internal bump stop |
fitment and ordering details
| Application | Toyota Tacoma, selected 2005–2023 fitments |
|---|---|
| Required suspension | Aftermarket upper control arms |
| Important | Per-trim front-lift ranges differ; inspect manufacturer application chart |
| Opposite side | 41-319581 is separate |
