Description

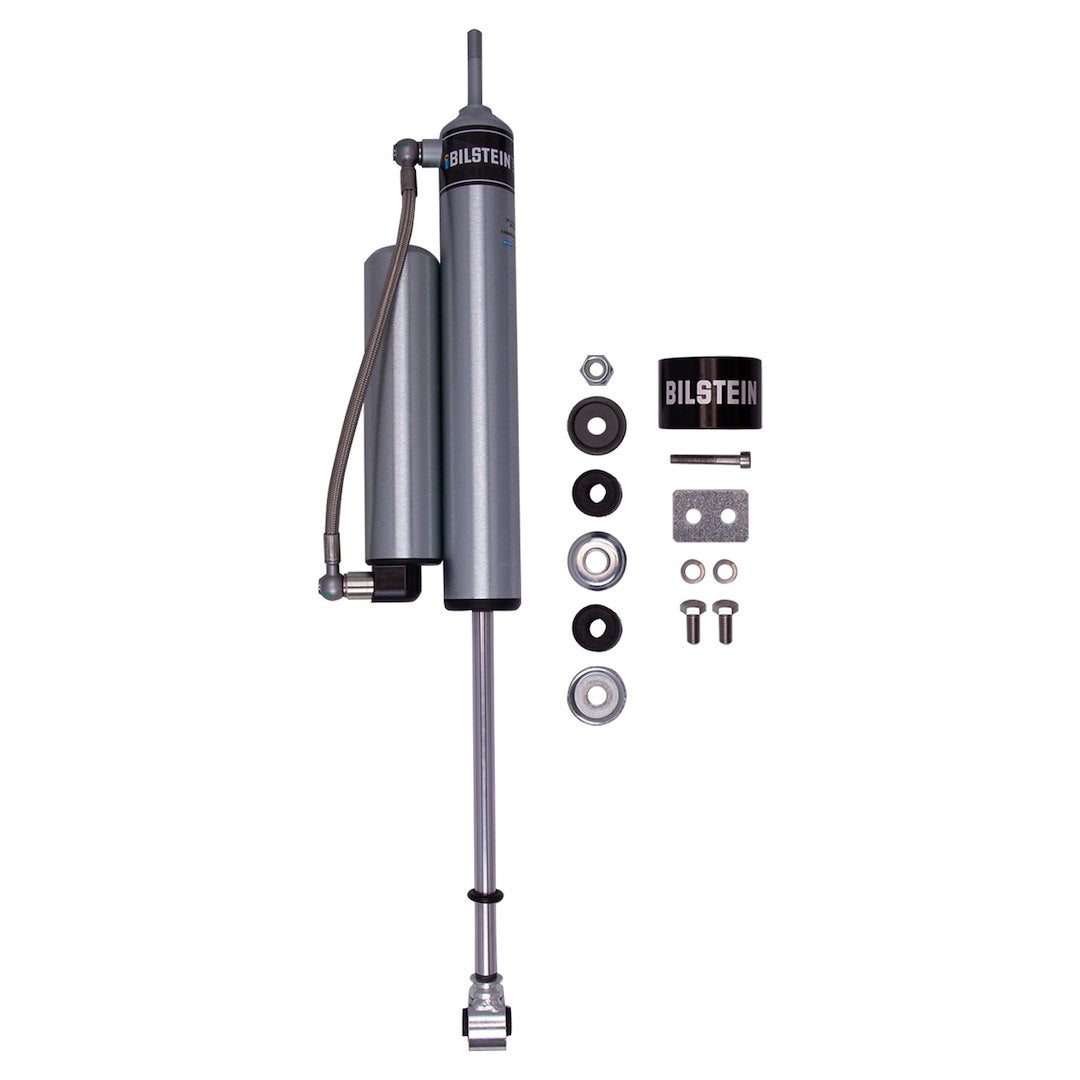

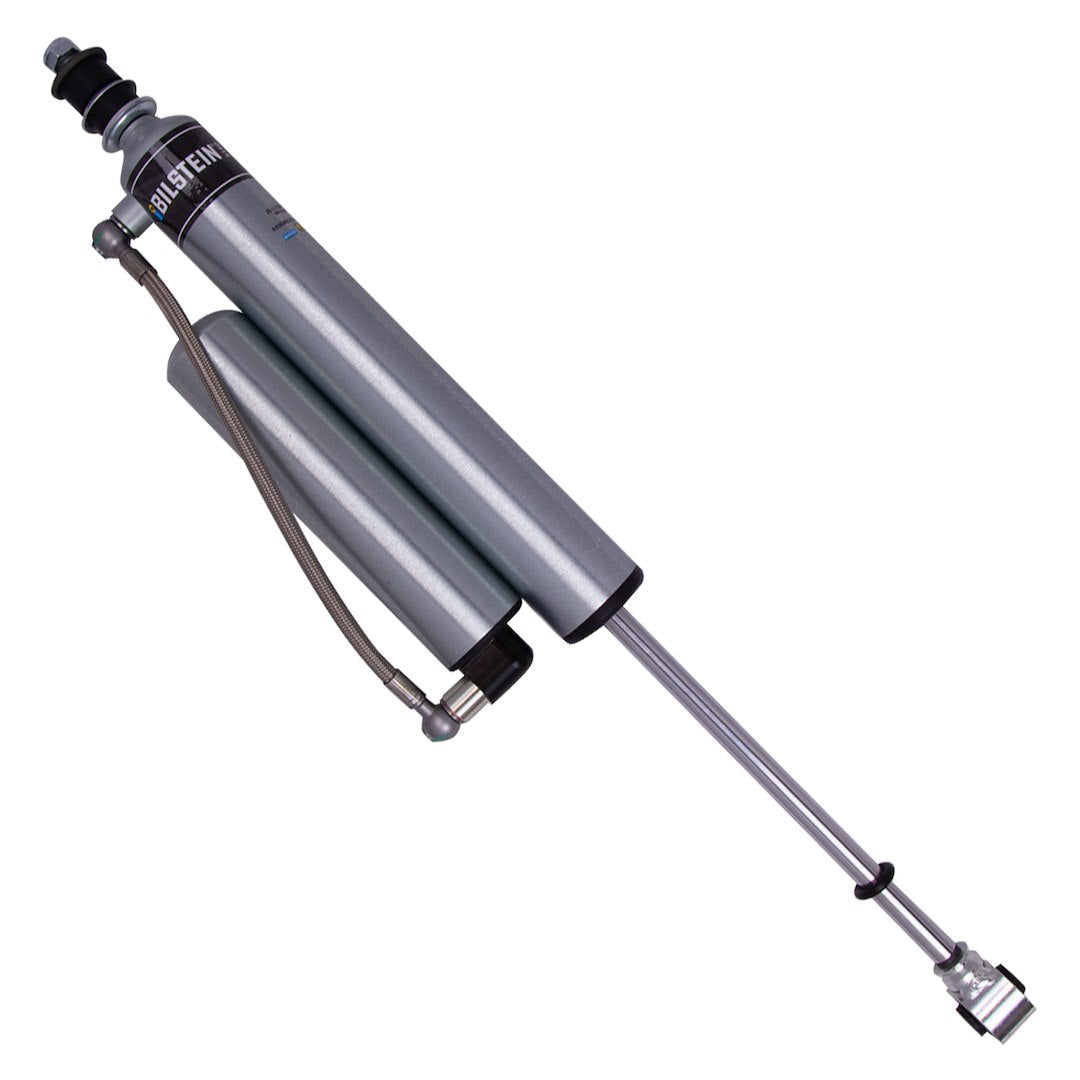

The B8 5160 25-312157 uses a remote reservoir to increase cooling capacity and wheel travel compared with a conventional shock. It belongs to Bilstein's direct-fit range for lifted trucks and SUVs, with exact Mercedes-Benz applications below. Application-tuned velocity-sensitive digressive valving and nitrogen monotube construction support consistent damping with reduced fade and off-road durability.
Reservoir installation

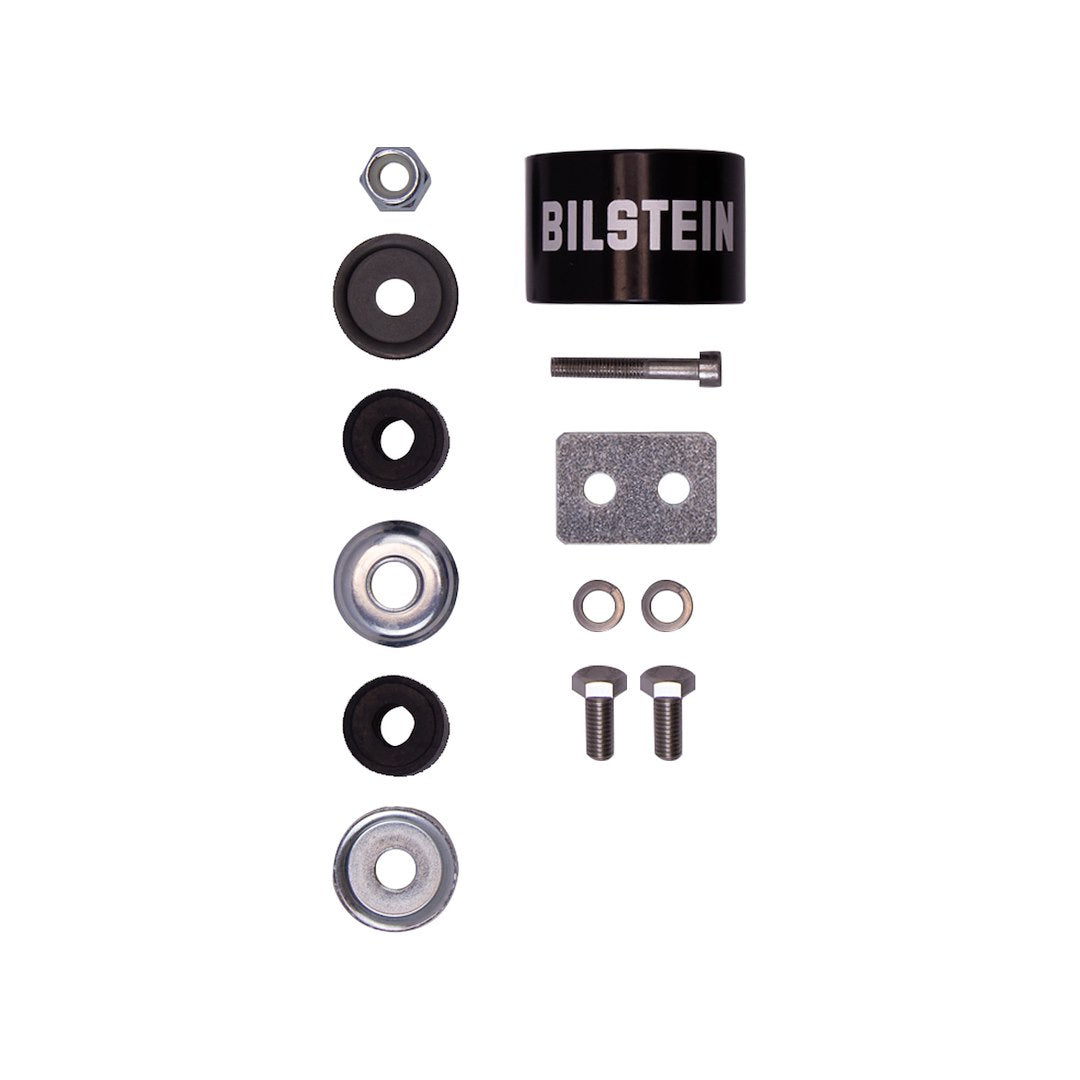

A 360-degree swivel banjo hose fitting supports a low-profile installation, with a billet reservoir mount where applicable. This single silver shock has a 9/16-inch rod, eyelet upper mount and stud lower mount. Lengths are 16 inches compressed and 24.57 inches extended. Ride height is adjustable; a boot and spring are not included.
Vehicle applications
Match the year, model and configuration details shown for the application. Blank fields do not establish compatibility with additional configurations.
| Years | Vehicle | Application details |
|---|---|---|
| 2002–2008 | Mercedes-Benz G500 | |
| 2003–2011 | Mercedes-Benz G55 AMG | |
| 2009–2018 | Mercedes-Benz G550 |
Specifications
| Estimated Install Time (Hours) | 0.5 |
| Compressed Length (IN) | 16 Inch |
| Extended Length (IN) | 24.57 Inch |
| Rod Diameter (IN) | 9/16 Inch |
| Upper Mounting Style | Eyelet |
| Internal Design | Monotube |
| Type | Nitrogen Gas Charged |
| Adjustable Valving | No |
| Includes Boot | No |
| Includes Dust Shield | No |
| With Coil Spring | No |
| Body Color | Silver |
| Quantity | Single |
| Lower Mounting Style | Stud |
| Universality | Vehicle Specific |
| Valving Type | Velocity Sensitive Digressive Valving |
| Ride Height Adjustable | Yes |
| With Reservoir | Yes |
