Brand New • Online Only

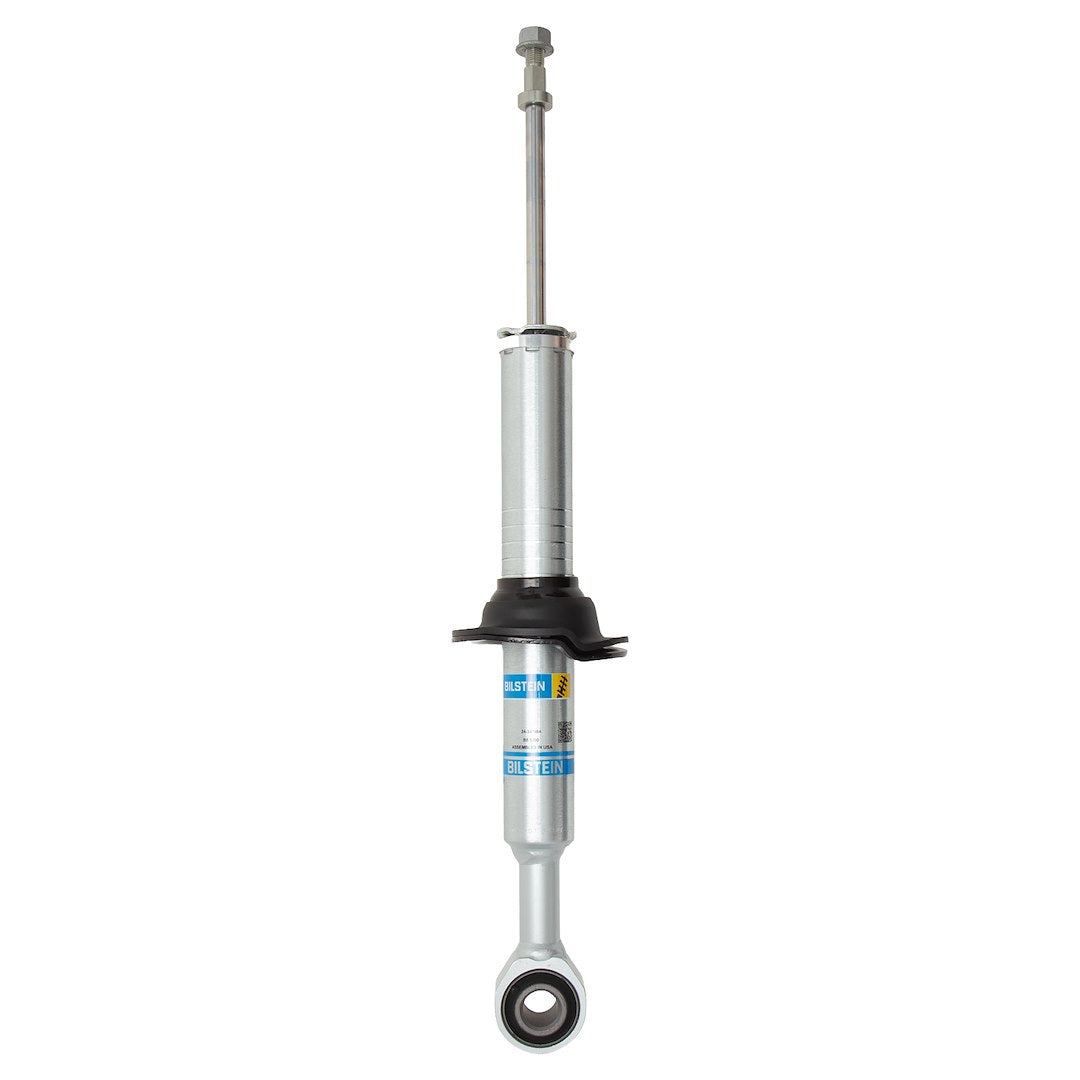

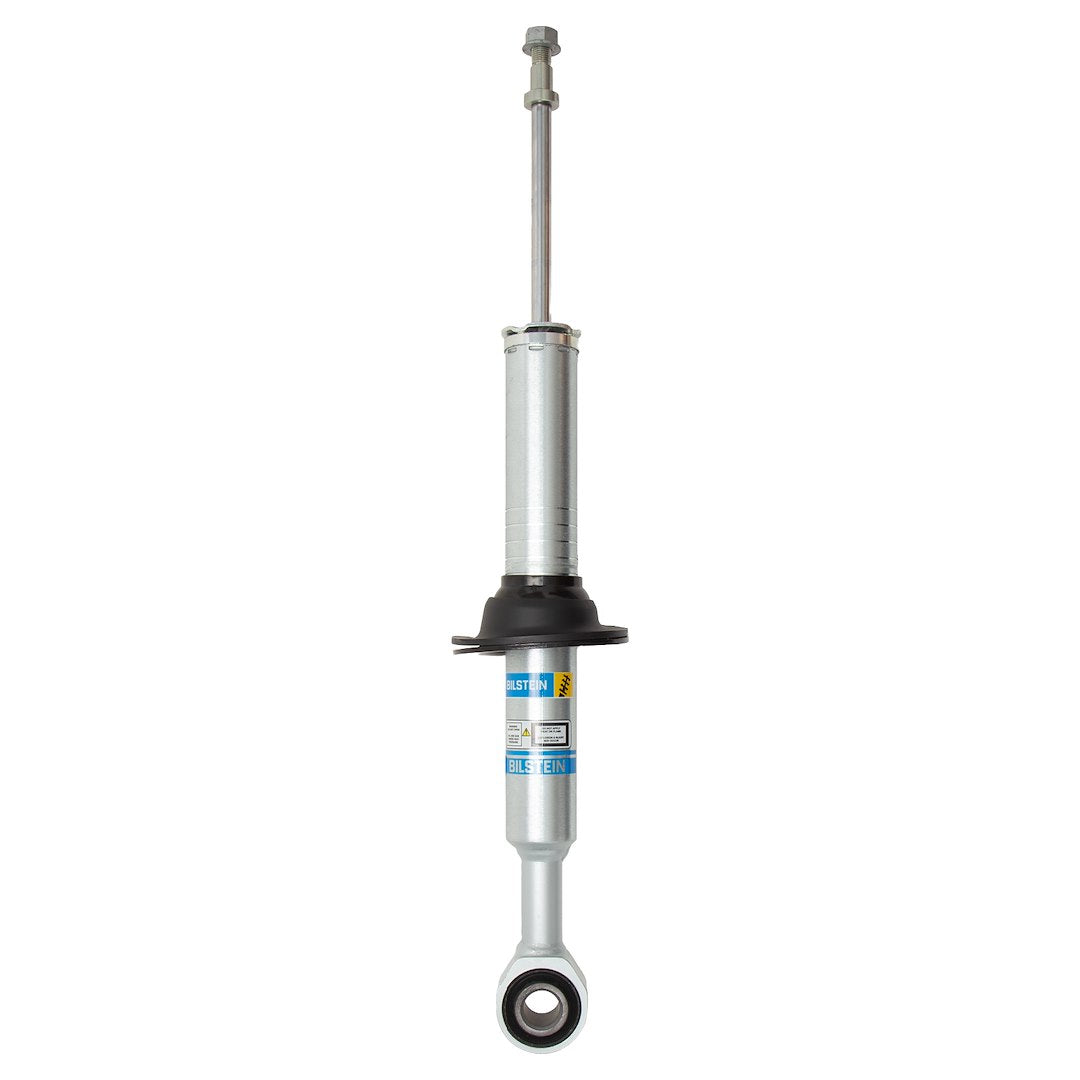

Bilstein 24-347464 B8 5100 Front Shock Absorber

Save $76.00
Bilstein MPN: 24347464

Price:
Sale price$229.00 Regular price$305.00

Shipping calculated at checkout

Stock:
In stock (30 units), ready to be shipped

Description

For the Toyota configurations below with front OE coilover suspension, Bilstein 24-347464 offers B8 5100 ride-height adjustment using the OE spring. Snap-ring grooves change spring-seat position; the series' 0–3-inch front lift varies by application. This arrangement supports leveling, greater wheel travel and improved handling.

Shock details

The silver nitrogen monotube contains a 46 mm digressive piston with self-adjusting deflective-disc valving. Stud/eyelet mounts span 18.96 inches compressed to 24.46 inches extended. One shock is supplied without a spring or boot, with no manual valve adjustment.

Vehicle applications

Match the year, model and configuration details shown for the application. Blank fields do not establish compatibility with additional configurations.

Year Make Model
2024 Toyota Land Cruiser
2025 Toyota 4Runner
2025 Toyota Land Cruiser
2026 Toyota 4Runner
2026 Toyota Land Cruiser

Specifications

Estimated Install Time (Hours) 0.5
Rod Diameter (IN) 1.81 Inch
Compressed Length (IN) 18.96 Inch
Extended Length (IN) 24.46 Inch
Lower Mounting Style Eyelet
Internal Design Monotube
Type Nitrogen Gas Charged
Adjustable Valving No
Includes Boot No
Includes Dust Shield No
With Coil Spring No
With Reservoir No
Valving Type Self-Adjusting Deflective Disc Valving
Body Color Silver
Quantity Single
Upper Mounting Style Stud
Universality Vehicle Specific
Ride Height Adjustable Yes
