Description

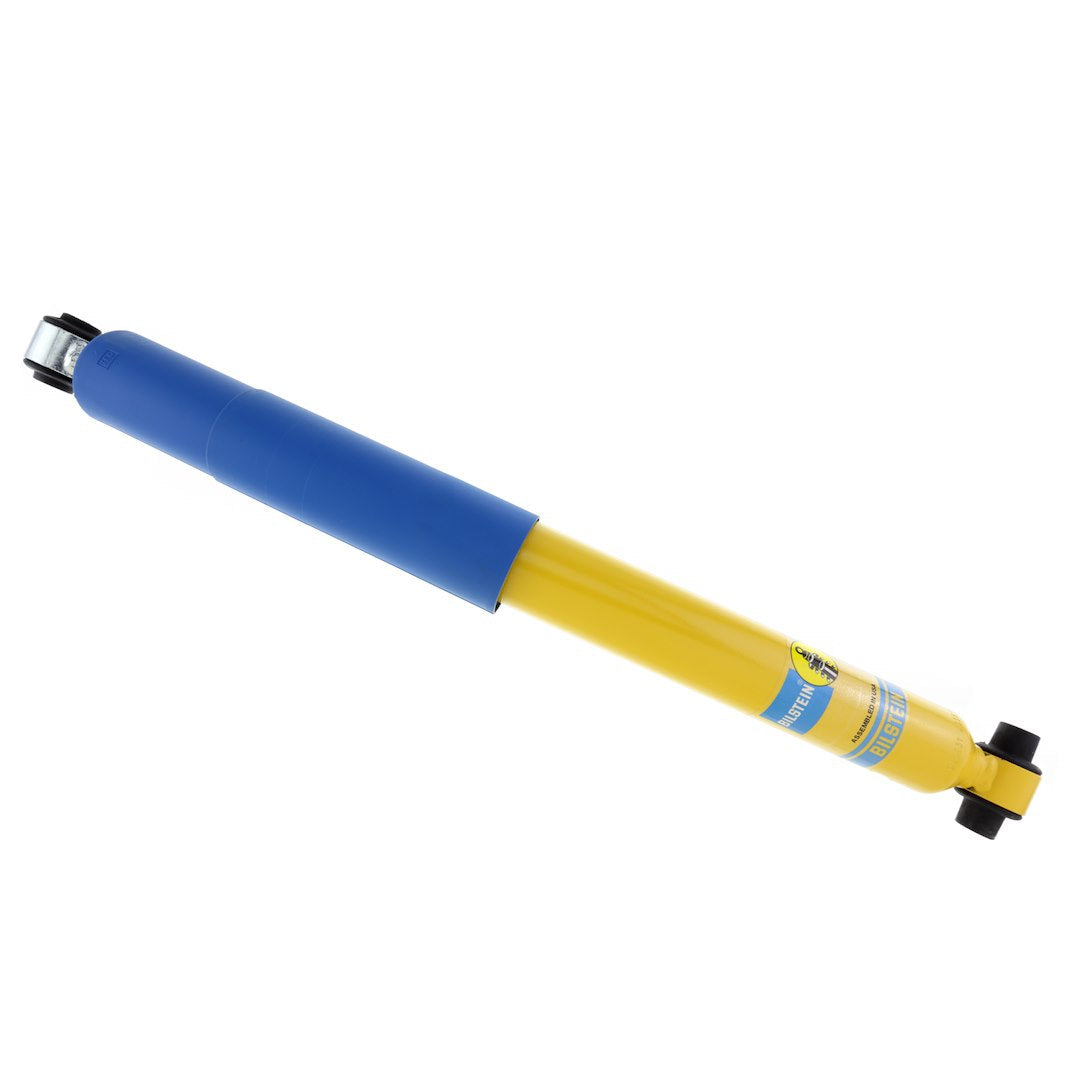

Bilstein 24-103350 has a 14.86-to-23.35-inch compressed/extended span and eyelet connections at both ends. This single yellow 4600 shock uses nitrogen monotube construction with deflective-disc valving. A boot is included but hardware is not; retain the engine, drivetrain and spring restrictions in the applications below.
Compatibility
Any mounting, position, size and component restrictions stated elsewhere in this listing still apply.
Vehicle applications for Bilstein 24103350
Listed vehicle applications for Bilstein 24103350 are grouped below by model and configuration. Unspecified configurations are not confirmed by this list.
| Years | Vehicle | Application details |
|---|---|---|
| 2002–2005 | Chevrolet Trailblazer | |
| 2006–2009 | Chevrolet Trailblazer | Engine: L6; 4.2L/256; GAS; MFI |
| 2006–2008 | Chevrolet Trailblazer | Engine: V8; 5.3L/5328; GAS; MFI |
| 2002 | Chevrolet Trailblazer EXT | |
| 2003–2006 | Chevrolet Trailblazer EXT | Engine: L6; 4.2L/256; GAS; MFI |
| 2003–2006 | Chevrolet Trailblazer EXT | Engine: V8; 5.3L/5328; GAS; MFI |
| 2002–2004, 2006–2009 | GMC Envoy | Drivetrain: Four Wheel Drive; Rear Spring Type: Rear Coil |
| 2002–2009 | GMC Envoy | Drivetrain: Rear Wheel Drive; Rear Spring Type: Rear Coil |
| 2002 | GMC Envoy XL | Drivetrain: Four Wheel Drive; Rear Spring Type: Rear Coil |
| 2002 | GMC Envoy XL | Drivetrain: Rear Wheel Drive; Rear Spring Type: Rear Coil |
| 2003–2006 | GMC Envoy XL | Drivetrain: Four Wheel Drive; Engine: L6; 4.2L/256; GAS; MFI; Rear Spring Type: Rear Coil |
| 2003–2006 | GMC Envoy XL | Drivetrain: Four Wheel Drive; Engine: V8; 5.3L/5328; GAS; MFI; Rear Spring Type: Rear Coil |
| 2003–2005 | GMC Envoy XL | Drivetrain: Rear Wheel Drive; Engine: L6; 4.2L/256; GAS; MFI; Rear Spring Type: Rear Coil |
| 2003–2005 | GMC Envoy XL | Drivetrain: Rear Wheel Drive; Engine: V8; 5.3L/5328; GAS; MFI; Rear Spring Type: Rear Coil |
| 2004–2005 | GMC Envoy XUV | Drivetrain: Four Wheel Drive; Engine: L6; 4.2L/256; GAS; MFI; Rear Spring Type: Rear Air |
| 2004–2005 | GMC Envoy XUV | Drivetrain: Four Wheel Drive; Engine: L6; 4.2L/256; GAS; MFI; Rear Spring Type: Rear Coil |
| 2004–2005 | GMC Envoy XUV | Drivetrain: Four Wheel Drive; Engine: V8; 5.3L/5328; GAS; MFI; Rear Spring Type: Rear Air |
| 2004–2005 | GMC Envoy XUV | Drivetrain: Four Wheel Drive; Engine: V8; 5.3L/5328; GAS; MFI; Rear Spring Type: Rear Coil |
| 2004–2005 | GMC Envoy XUV | Drivetrain: Rear Wheel Drive; Engine: L6; 4.2L/256; GAS; MFI; Rear Spring Type: Rear Air |
| 2004–2005 | GMC Envoy XUV | Drivetrain: Rear Wheel Drive; Engine: L6; 4.2L/256; GAS; MFI; Rear Spring Type: Rear Coil |
| 2004–2005 | GMC Envoy XUV | Drivetrain: Rear Wheel Drive; Engine: V8; 5.3L/5328; GAS; MFI; Rear Spring Type: Rear Air |
| 2004–2005 | GMC Envoy XUV | Drivetrain: Rear Wheel Drive; Engine: V8; 5.3L/5328; GAS; MFI; Rear Spring Type: Rear Coil |
| 2003–2006 | Isuzu Ascender | Engine: L6; 4.2L/256; GAS; MFI |
| 2003–2006 | Isuzu Ascender | Engine: V8; 5.3L/5328; GAS; MFI |
| 2007–2008 | Isuzu Ascender | |
| 2002–2004 | Oldsmobile Bravada | Rear Spring Type: Rear Coil |
Specifications
| Type | Nitrogen Gas Charged |
| With Coil Spring | No |
| Internal Design | Monotube |
| Adjustable | No |
| Extended Length (IN) | 23.35 Inch |
| Compressed Length (IN) | 14.86 Inch |
| Upper Mounting Style | Eyelet |
| Lower Mounting Style | Eyelet |
| Body Color | Yellow |
| Quantity | Single |
| Rod Diameter (IN) | 0.55 Inch |
| Valving Type | Deflective Disc Valving |
| Rod Finish | Polished |
| Rod Material | Steel |
| Body Material | Steel |
| With Reservoir | No |
| Includes Dust Shield | No |
| Includes Hardware | No |
| Includes Boot | Yes |
| Estimated Install Time (Hours) | 0.5 |
