Brand New • Online Only

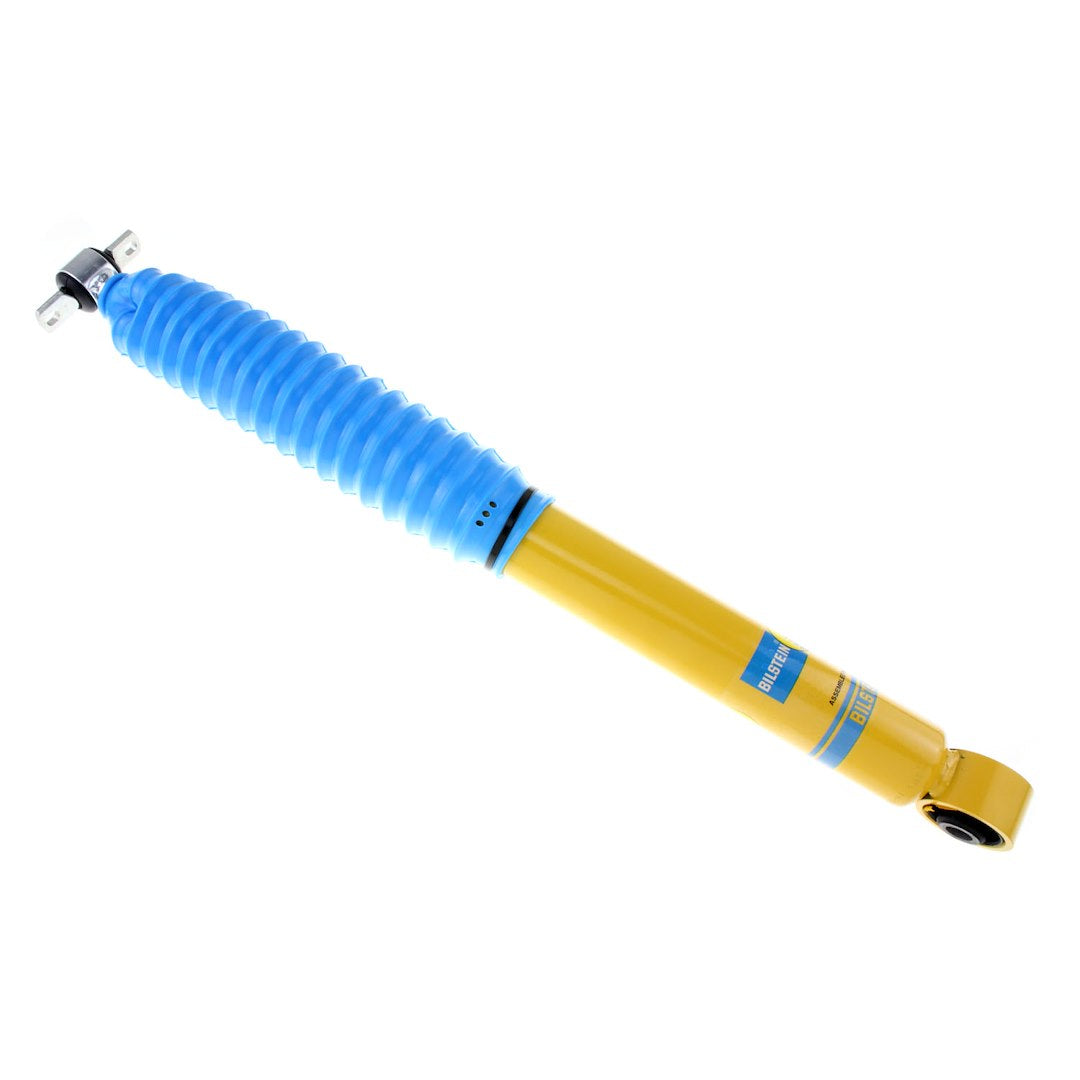

Bilstein 24-020435 Monotube Shock - 24.63 in Extended

Save $43.00
BilsteinSKU: 96-2932

Price:
Sale price$126.00 Regular price$169.00

Shipping calculated at checkout

Stock:
Only 7 units left

Description

Bilstein 24-020435 is a nitrogen-gas-charged monotube shock absorber for the vehicle applications shown below. It measures 24.63 in extended and 15.61 in compressed, with cross pin upper and eyelet lower mounts. Supplied as a single shock, it should be matched to the required suspension position and fitment details.

Specifications

Brand Bilstein
Manufacturer Part Number 24-020435
Type Nitrogen Gas Charged
With Coil Spring No
Internal Design Monotube
Adjustable No
Upper Mounting Style Cross Pin
Lower Mounting Style Eyelet
Body Color Yellow
Quantity Single
Valving Type Deflective Disc Valving
Rod Finish Polished
Rod Material Steel
Body Material Steel
With Reservoir No
Includes Dust Shield No
Includes Hardware No
Includes Boot Yes
Estimated Install Time (Hours) 0.5

Dimensions

Extended Length (IN) 24.63 in
Compressed Length (IN) 15.61 in
Rod Diameter (IN) 0.55 in

Key Features

  • Increased Power Reserves and Service Life, Even When Pulling Transporters and Trailers or During Frequent Journeys with Loads.
  • Optimum Addition and Enhanced Lane Change Stability in Both Day to Day and Extreme Solutions.
  • Marked Improvement in Safety and Performance without Additional Spring Changes.
  • Bilstein Gas Pressure Technology.
  • Bilstein Monotube/Upside Down Technology.
  • Road and Track Tested by Bilstein for Fine Tuning.
  • Limited Lifetime Warranty.

Compatibility

Vehicle Applications

  • 1991 Chevrolet K1500
  • 1992 Chevrolet K1500
  • 1993 Chevrolet K1500
  • 1994 Chevrolet K1500
  • 1995 Chevrolet K1500
  • 1996 Chevrolet K1500
  • 1997 Chevrolet K1500
  • 1998 Chevrolet K1500
  • 1999 Chevrolet K1500
  • 1991 GMC K1500
  • 1992 GMC K1500
  • 1993 GMC K1500
  • 1994 GMC K1500
  • 1995 GMC K1500
  • 1996 GMC K1500
  • 1997 GMC K1500
  • 1998 GMC K1500
