Description

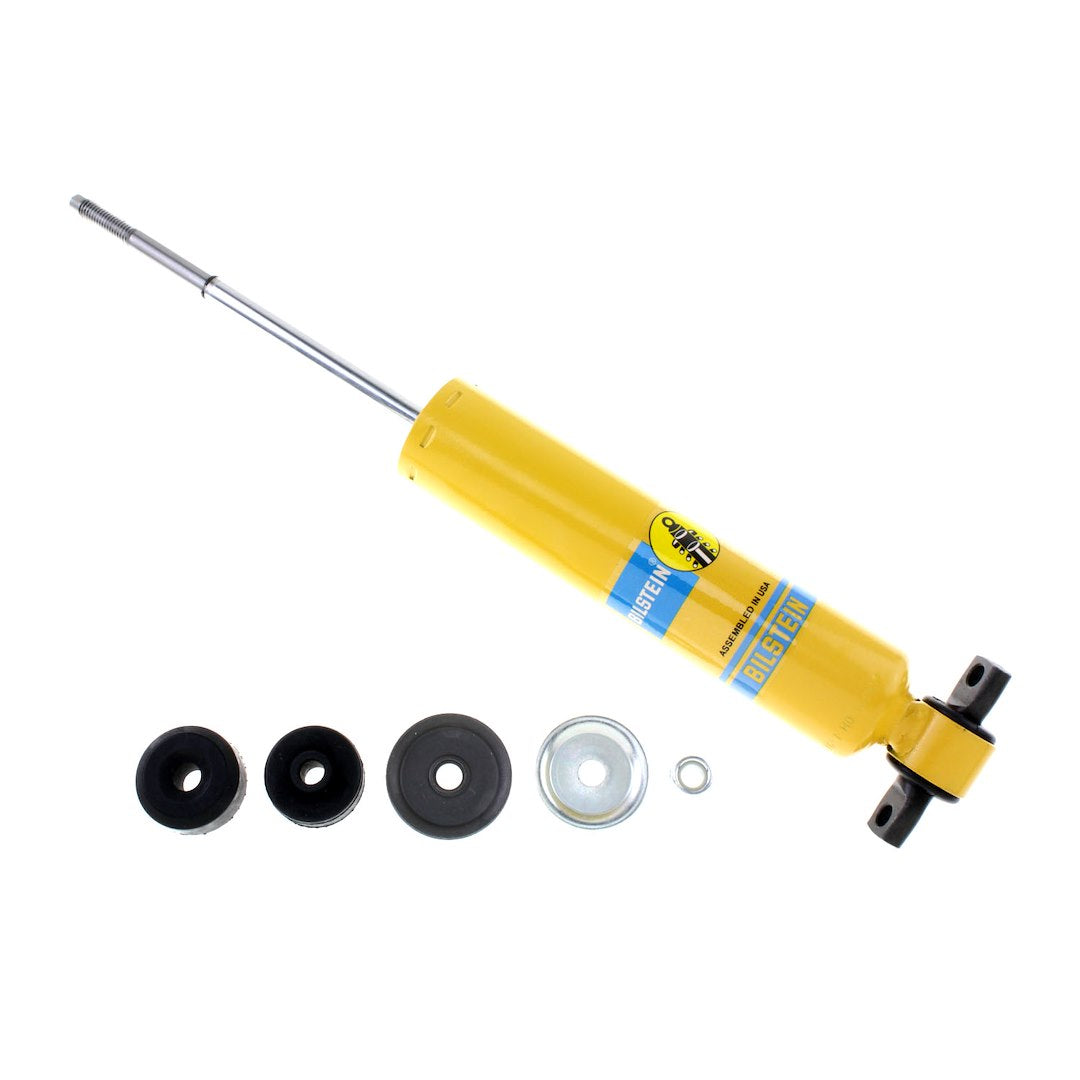

Bilstein 24-016971 is a single 4600 shock for the specified Chevrolet C-series applications. A yellow steel monotube body houses nitrogen charging and deflective-disc valving. Stud/cross-pin mounts and a 9.61-to-14.11-inch compressed/extended span define its installation; hardware is included without a boot.
Vehicle applications
Match the year, model and configuration details shown for the application. Blank fields do not establish compatibility with additional configurations.
| Year | Make | Model |
|---|---|---|
| 1991 | Chevrolet | C1500 |
| 1992 | Chevrolet | C1500 |
| 1993 | Chevrolet | C1500 |
| 1994 | Chevrolet | C1500 |
| 1995 | Chevrolet | C1500 |
| 1996 | Chevrolet | C1500 |
| 1997 | Chevrolet | C1500 |
| 1998 | Chevrolet | C1500 |
| 1999 | Chevrolet | C1500 |
| 1991 | Chevrolet | C2500 |
| 1992 | Chevrolet | C2500 |
| 1993 | Chevrolet | C2500 |
| 1994 | Chevrolet | C2500 |
Specifications
| Type | Nitrogen Gas Charged |
| With Coil Spring | No |
| Internal Design | Monotube |
| Adjustable | No |
| Extended Length (IN) | 14.11 Inch |
| Compressed Length (IN) | 9.61 Inch |
| Upper Mounting Style | Stud |
| Lower Mounting Style | Cross Pin |
| Body Color | Yellow |
| Quantity | Single |
| Rod Diameter (IN) | 0.55 Inch |
| Valving Type | Deflective Disc Valving |
| Rod Finish | Polished |
| Rod Material | Steel |
| Body Material | Steel |
| With Reservoir | No |
| Includes Dust Shield | No |

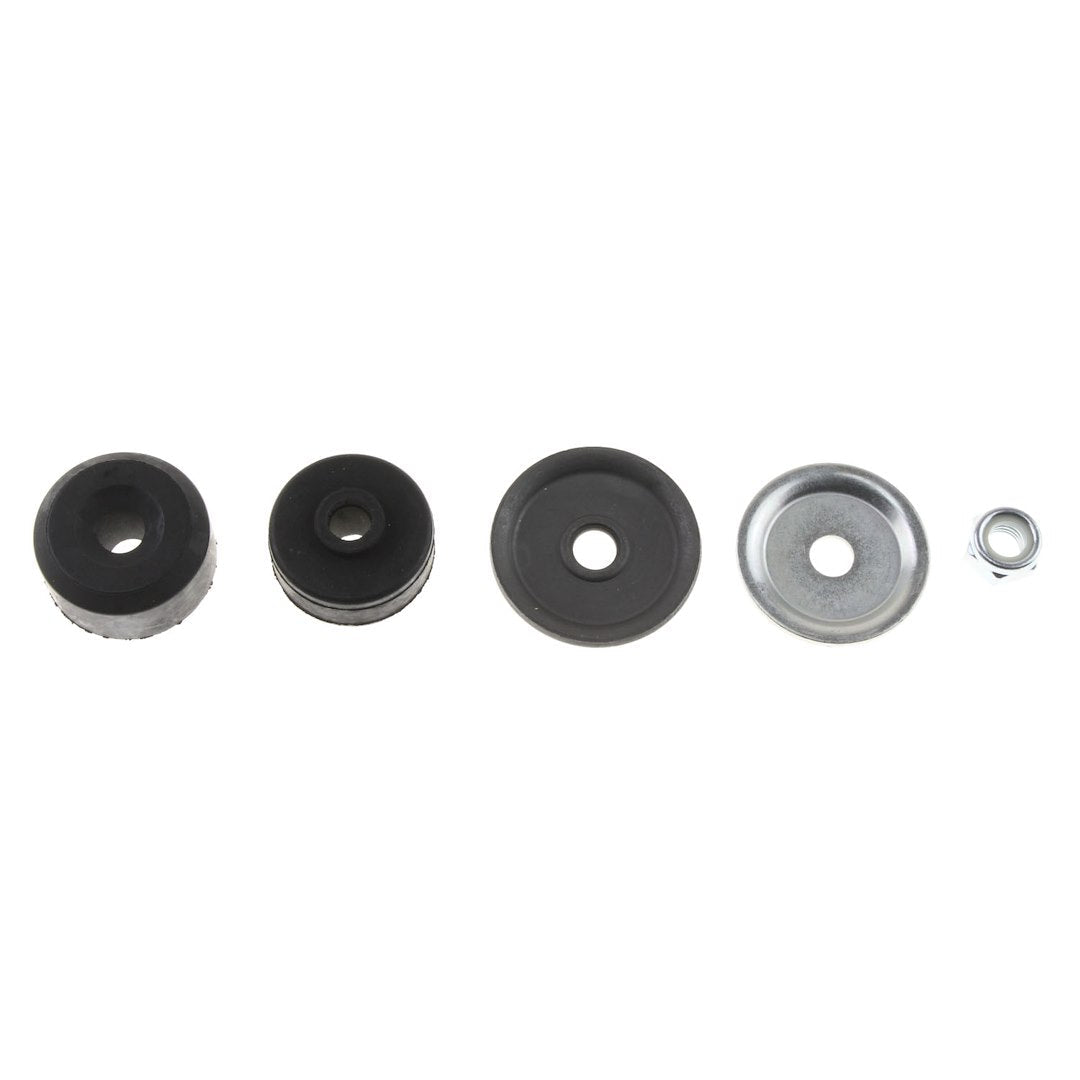

| Includes Hardware | Yes |
| Includes Boot | No |
| Estimated Install Time (Hours) | 0.5 |
