Description

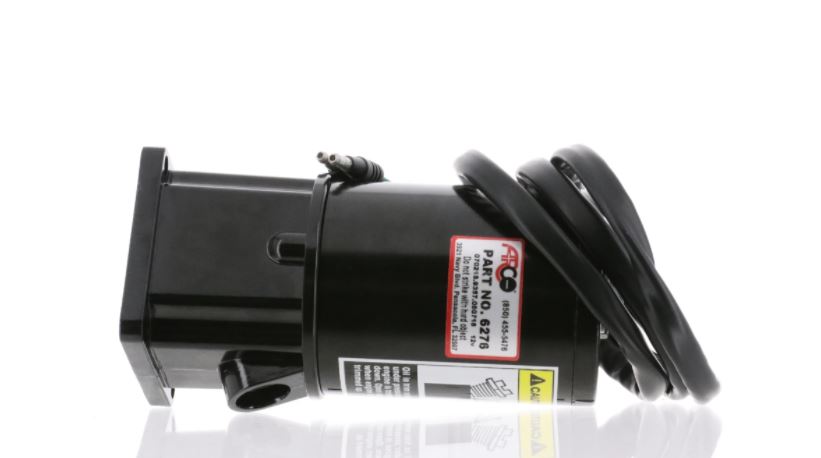

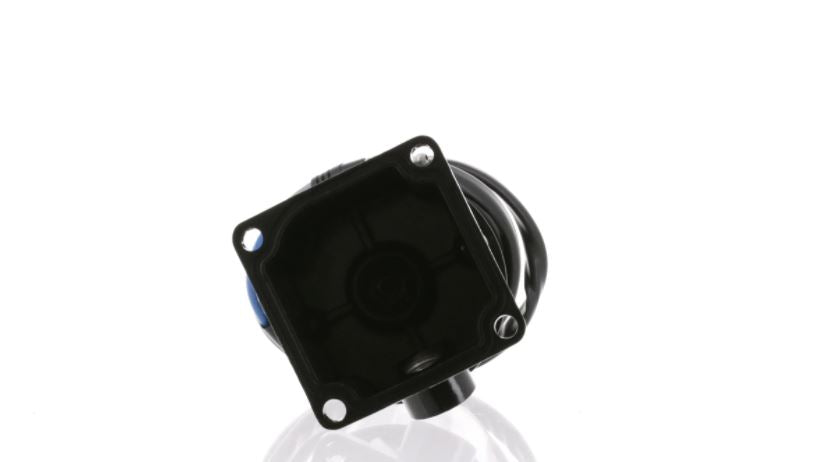

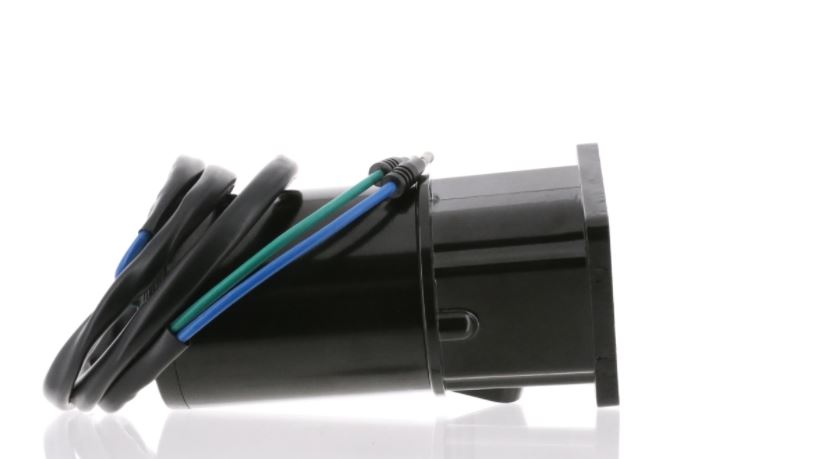

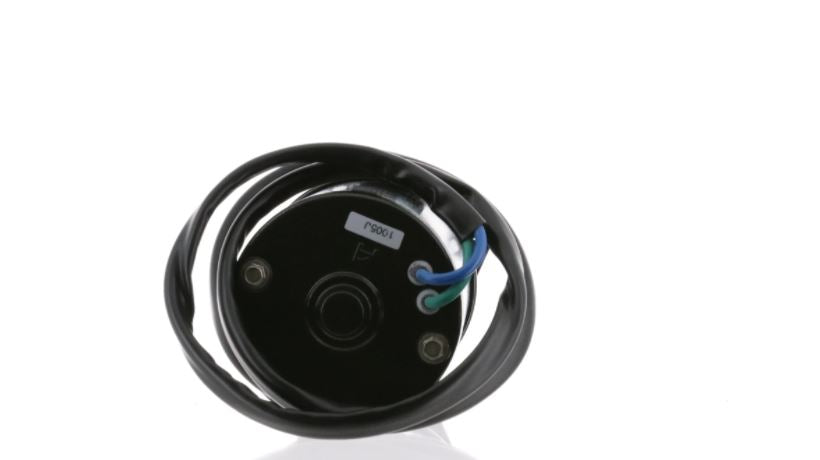

For single-ram Mercury, Mariner and Force 40–125 HP applications, the ARCO 6276 provides the replacement tilt/trim motor and reservoir. The two-wire motor has bullet terminals, a hollow-hex shaft and a four-bolt mount. It arrives Brand New with stainless mounting screws, a shaft adaptor, O-ring and fill plug; the complete trim pump assembly is not included.
Specifications
| Brand | Arco Marine |
| Manufacturer Part Number | 6276 |
| Mounting Type | 4-Bolt |
| Connection Type | 2 Wire |
| Connector Gender | Bullet Connector Terminal |
| Voltage | 12 Volt |
| With O-Ring | Yes |
Key Features
- Designed for Late-model Mercury/Mariner and Force 40-125 HP outboards with single ram; motor/reservoir only.
- Voltage: 12 Volt.
- Mounting style: 4-Bolt.
- Connection Type: 2 Wire.
- Connector Gender: Bullet Connector Terminal.
Compatibility
| Compatibility | Late-model Mercury/Mariner and Force 40-125 HP outboards with single ram; motor/reservoir only |
