Description
The WFCO 8700 Series Power Converter is a versatile and efficient solution for converting 105-130V AC to 13.2-14.4V DC, providing a continuous output of 163W and a peak output of 205W. Designed for RV, marine, and off-grid applications, this unit ensures stable and reliable DC power while protecting your electrical system with built-in safety features.
Equipped with WFCO’s three-stage automatic battery charging, this converter extends battery life by intelligently adjusting voltage output based on charge levels. The system operates in three modes:
- Float Mode (13.2V DC) – Maintains charge while preventing overcharging
- Absorption Mode (13.6V DC) – Efficiently charges the battery
- Bulk Mode (14.4V DC) – Rapidly restores power for deeply discharged batteries
For enhanced safety and reliability, the 8700 Series offers short-circuit, reverse polarity, over-current, over-temperature, and over-voltage protection. Built to FCC Class B compliance, this converter minimizes interference with televisions, radios, and other sensitive electronics.

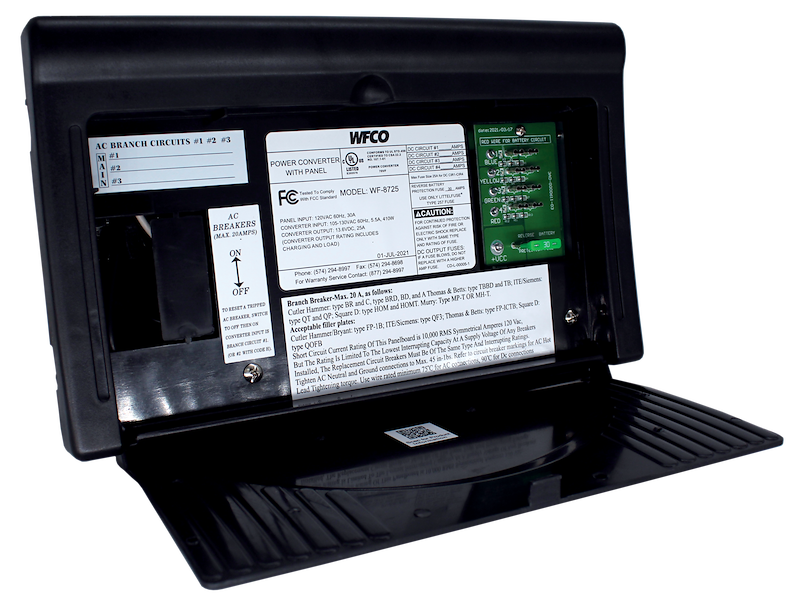

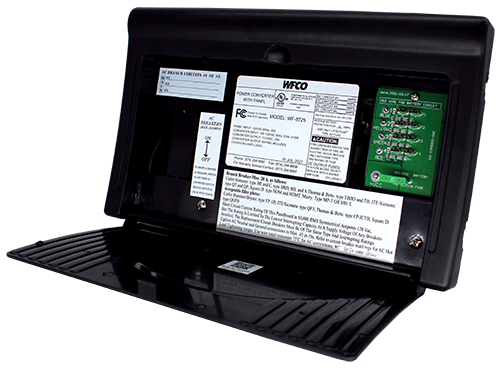

The integrated AC/DC distribution panel simplifies installation and organization, featuring:
✔ Four 30A AC output circuits
✔ Four 12A DC output circuits
✔ LED indicators for easy troubleshooting
Key Features & Benefits:
✔ Converts 105-130V AC to 13.2-14.4V DC – 163W continuous / 205W peak output
✔ 12A max DC output for stable power supply
✔ Three-stage smart battery charging – Improves battery life and performance
✔ Comprehensive safety features:
-
Short-circuit, reverse polarity, over-current, over-temperature, and over-voltage protection
✔ AC/DC Power Distribution Center: - Four 30A AC circuits & Four 12A DC circuits
-
LED indicators for circuit status monitoring
✔ FCC Class B compliant – Reduces interference with electronics
✔ Durable & Compact Design: - Dimensions: 5" L x 15" W x 7-1/4" H
-
Sleek black finish for a modern look
✔ Limited 2-Year Warranty
The WFCO 8700 Series Power Converter is the ideal choice for RVers, boaters, and off-grid users looking for efficient power conversion, intelligent battery charging, and advanced protection features. Upgrade your power system today for reliable, safe, and efficient performance!
