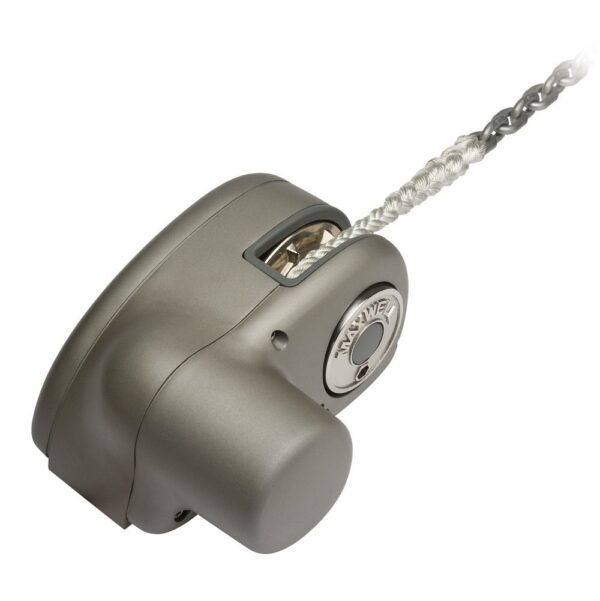

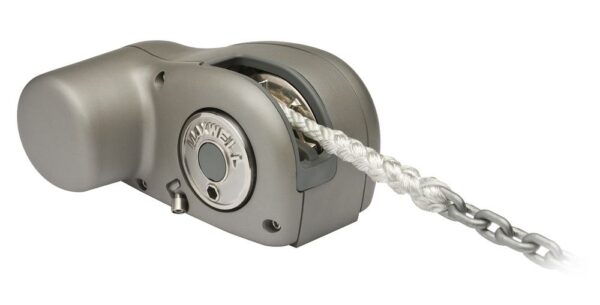

Maxwell Hrcff812v HRC Free-Fall 12V Anchor Winch

The winch releases the anchor through automatic free fall and retrieves it under power. Its 12-volt motor sits above deck in a watertight housing.

Features

• Activate the Free Fall lever and helm or footswitch down control to release the anchor; up control automatically disengages free fall for powered retrieval.
• Watertight above-deck motor/drive case saves below-deck space and allows routine maintenance; bolt-down installation.

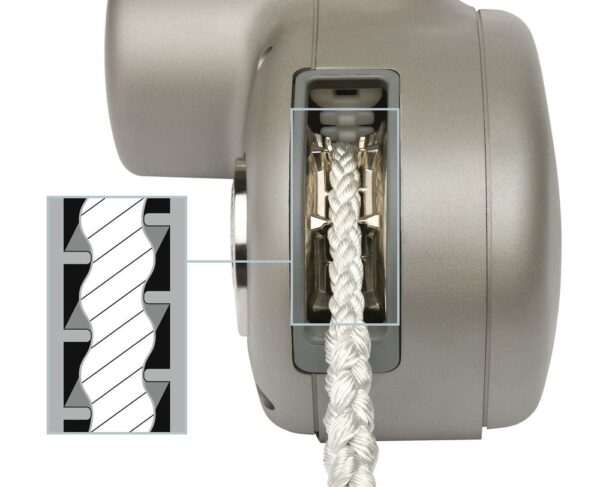

• Patented enclosed pressure-arm system transitions between rope and chain; integrated composite-nylon through-deck hawse pipe prevents snagging.
• Hard-anodized die-cast marine-alloy case; efficient spur gearbox with non-backwind mechanism.
• Remote-panel up/down switch controls high-speed jam-free retrieval; supplied emergency Free Fall lever permits release during power loss.
• Heavy-duty bidirectional motor with integrated wiring and new chainwheel.
• Simple bolt down installation ensures effortless and rapid on-deck installation and set up.
• Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation.
• Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection.
• High efficiency spur gearbox incorporating a robust non-backwind mechanism.
• High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch.
• Emergency free fall function in the event of onboard power failure. Activated by the supplied, emergency Free Fall lever.
• Revolutionary new chainwheel.
• Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation.
• Limited 3 Year Warranty

Specifications

Additional product details

This 12-volt HRC Series anchor winch has free-fall operation and a nominal 5/16 chain size.
