Description

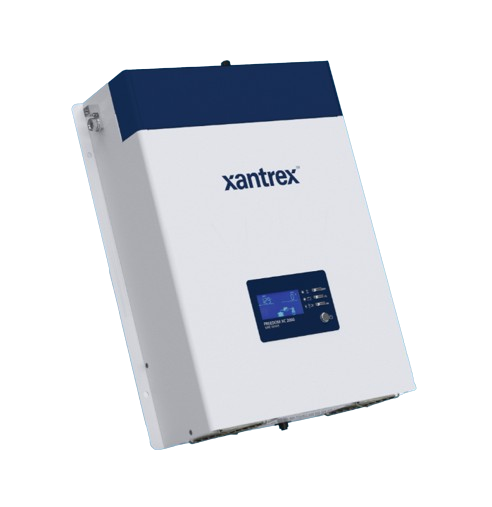

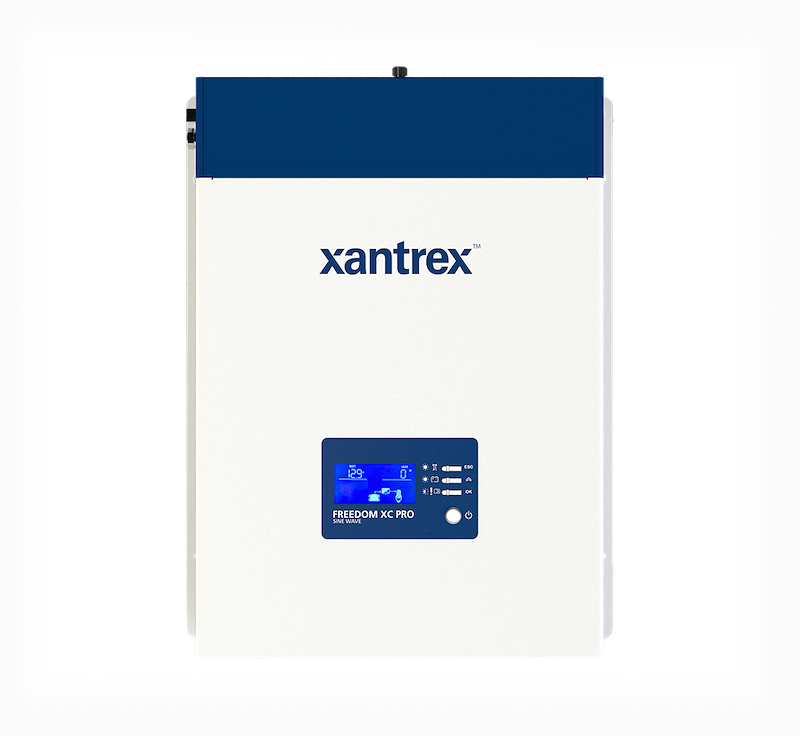

Power your RV, motorhome, camper van, or mobile electrical system with the Xantrex Freedom XC Pro Inverter/Charger (Part #818-2010). This brand new all-in-one power solution combines a 2,000-watt true sine wave inverter, 100-amp battery charger, and built-in 30-amp AC transfer relay in a compact package designed for 12V battery systems.
The Freedom XC Pro provides clean true sine wave AC power suitable for sensitive electronics and motor-driven appliances. Its 4,000-watt surge capability provides up to twice the continuous output for short-duration startup loads, making it well suited for demanding appliances such as refrigerators and microwaves.
Features
- Genuine Xantrex 818-2010 Freedom XC Pro
- Brand New
- 2,000-watt continuous true sine wave output
- Up to 4,000 watts surge output
- Designed for 12V battery systems
- 100-amp battery charger
- Up to 92% inverter efficiency
- Built-in 30-amp AC transfer relay
- Power-factor-corrected multi-stage battery charging
- Battery equalization capability
- Power Share functionality
- True sine wave output for sensitive electronics and motor loads
- Extended surge capability for difficult startup loads
- Programmable AC under-voltage shutdown
- Overload alarm and automatic shutdown protection
- Over-temperature alarm and shutdown protection
- Remote on/off capability
- Ignition-controlled inverter operation
- Onboard display for AC and battery current monitoring
- Inverter output percentage status display
- Optional Bluetooth remote panel compatibility

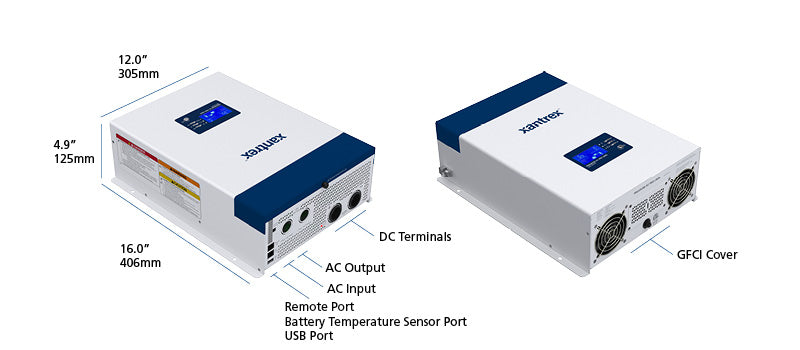

- Easy-access AC and DC wiring compartment
- Quick-connect AC input/output terminals
- Optional 20A GFCI receptacle compatibility
Specifications
- Manufacturer Part Number: 818-2010
- Series: Freedom XC Pro
- Product Type: Power Inverter / Battery Charger
- Battery Compatibility: 12 Volt
- Continuous Output: 2,000 Watts
- Peak / Surge Output: 4,000 Watts
- Waveform: True Sine Wave
- Charger Output: 100 Amps
- Inverter Input Voltage: 10.5–15.5 Volts DC
- Charger Input Voltage: 90–130 Volts AC
- Efficiency: Up to 92%
- AC Transfer Relay: Built-In 30 Amp
- Operating Temperature: 4°F to 140°F
- Length: 15.4 Inches
- Width: 10.8 Inches
- Height: 4.9 Inches Without Flanges
- Remote On/Off: Capable
- Bluetooth Monitoring: Optional Remote Panel Required
- Standards: ETL Listed to CSA 107.1 / UL458 / ABYC E11 / A-31 / A-32
Charging & Power Management
The Freedom XC Pro combines inverter, charging, and automatic transfer functions into a single compact unit. Key power-management capabilities include:
- Power-factor-corrected multi-stage charging
- Battery equalization
- Power Share
- Programmable AC under-voltage shutdown
- Automatic AC source transfer
- Ignition-controlled inverter operation
- Overload and over-temperature protection
The programmable 85–110V AC under-voltage shutdown range is particularly useful when operating from weak shore power or generator input.
Built-In AC Transfer Relay
The integrated 30-amp AC transfer relay automatically detects incoming AC power. When shore power or generator power becomes available, the unit transfers connected AC loads from inverter power to the incoming AC source.
When external AC power is unavailable, the inverter can supply true sine wave AC power from the connected 12V battery bank.
Applications
Ideal for 12V electrical systems requiring dependable AC power and high-output battery charging, including:
- RVs
- Motorhomes
- Fifth wheels
- Travel trailers
- Camper vans
- Truck campers
- Mobile work vehicles
- Off-grid electrical systems
- Shore-power-equipped installations
- Generator-equipped installations
Its extended surge capability makes it particularly useful for appliances with higher startup requirements, including refrigerators, microwaves, and other motor-driven loads, provided their electrical requirements remain within the inverter's ratings.
Installation Notes
- Designed for 12V battery systems
- Built-in 30A AC transfer relay
- Proper DC cable sizing and overcurrent protection are essential
- Verify battery bank type, capacity, and charging requirements before installation
- Ensure adequate ventilation and installation clearances
- AC and DC wiring must be appropriately sized for the application
- Quick-connect AC terminals and an accessible wiring compartment simplify installation
- Optional Bluetooth remote panel and optional 20A GFCI receptacle are sold separately
- Professional installation is recommended for high-current inverter/charger systems
Warranty
- Limited 2-Year Warranty
