Furrion FHO23SACR-SS 24" 12V Ducted RV Range Hood – Stainless Steel

The Furrion FHO23SACR-SS range hood is a slim, ducted 12V RV stove vent hood designed to remove cooking fumes and odors to the outside. Its 100 CFM single-speed ventilation system provides effective exhaust while the low-profile design helps preserve cooking space above the cooktop.

Designed for mobile environments, the range hood features ClimateSmart™ and VibrationSmart™ technology, an LED down light and a removable, washable charcoal filter. The gray body is finished with a stainless steel faceplate for a clean, contemporary appearance in RV kitchens.

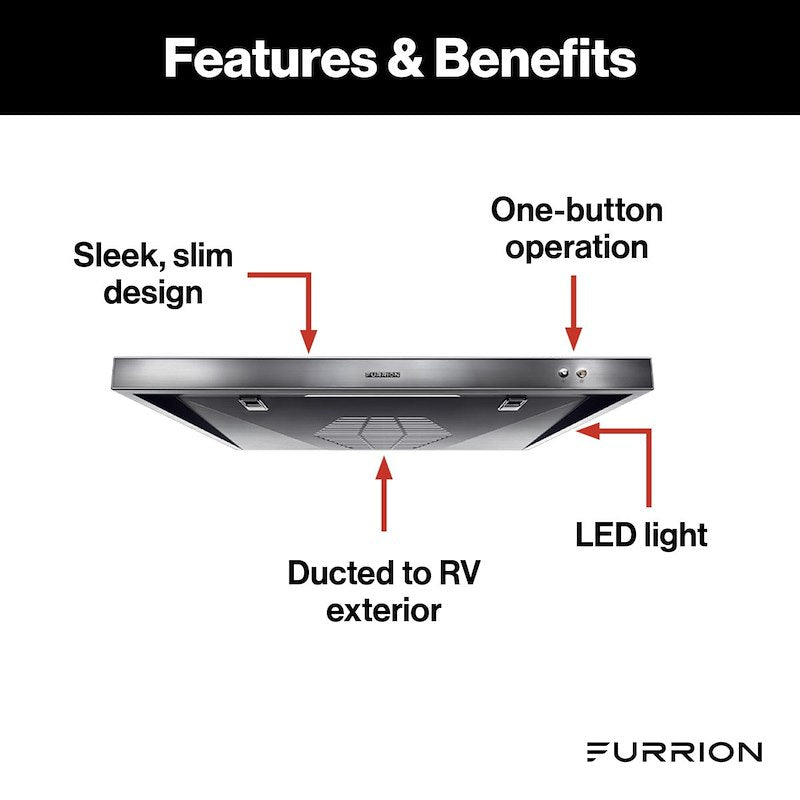

Features

• Ducted RV range hood
• 12V DC operation
• Single-speed exhaust fan
• Up to 100 CFM airflow

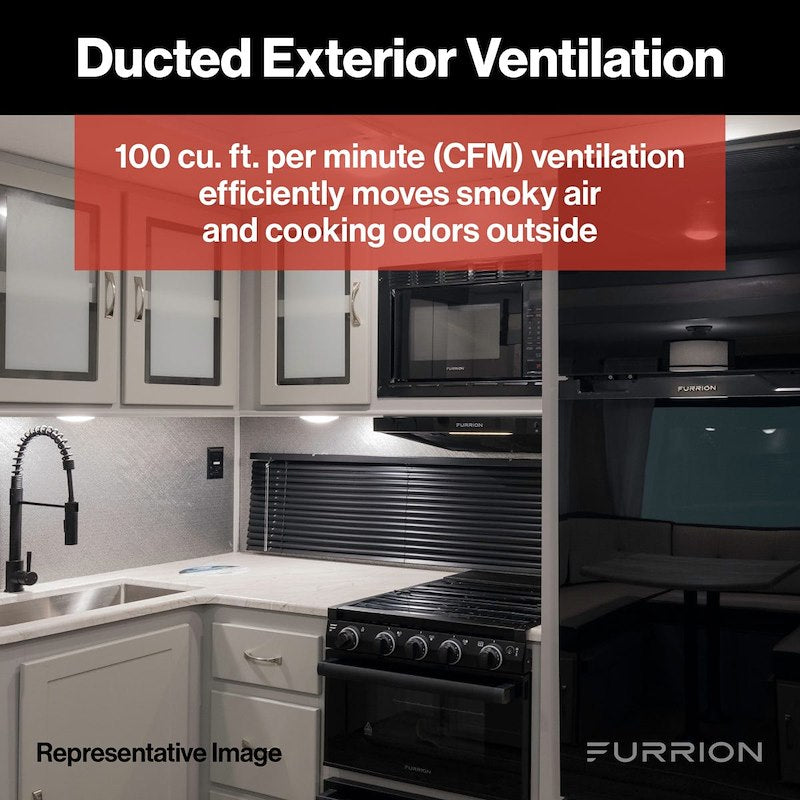

• Vents cooking fumes and odors outside
• LED down light illuminates the cooktop
• Removable and washable charcoal filter

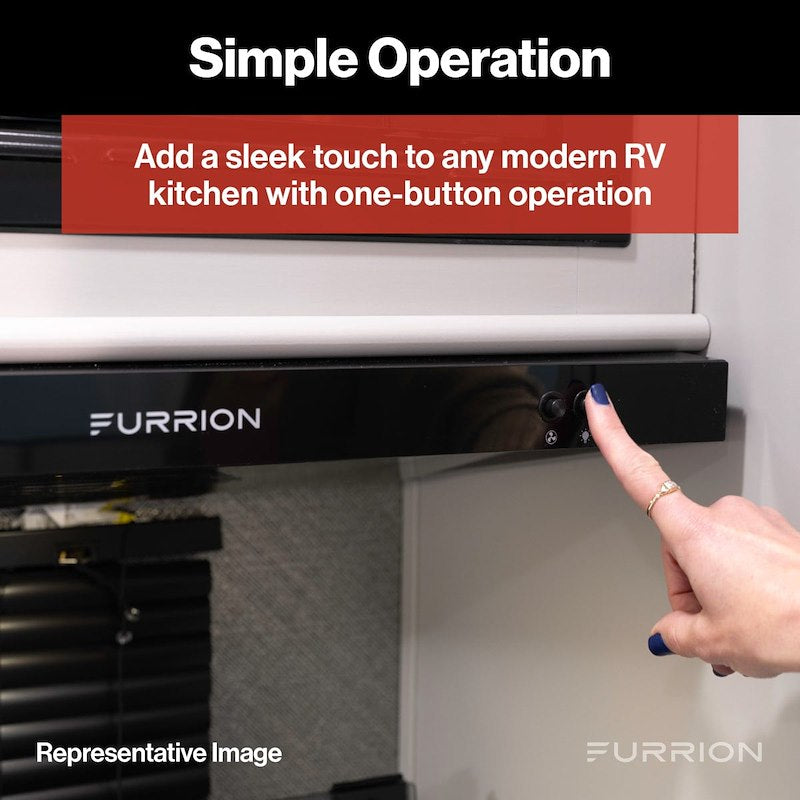

• Simple one-button operation

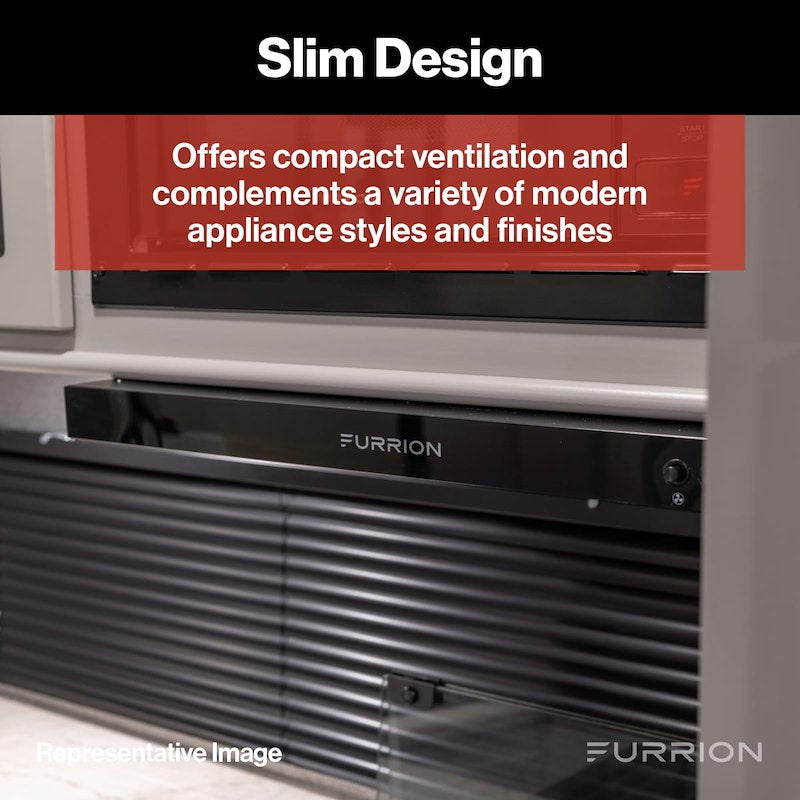

• Slim under-cabinet design
• Adjustable exhaust outlet

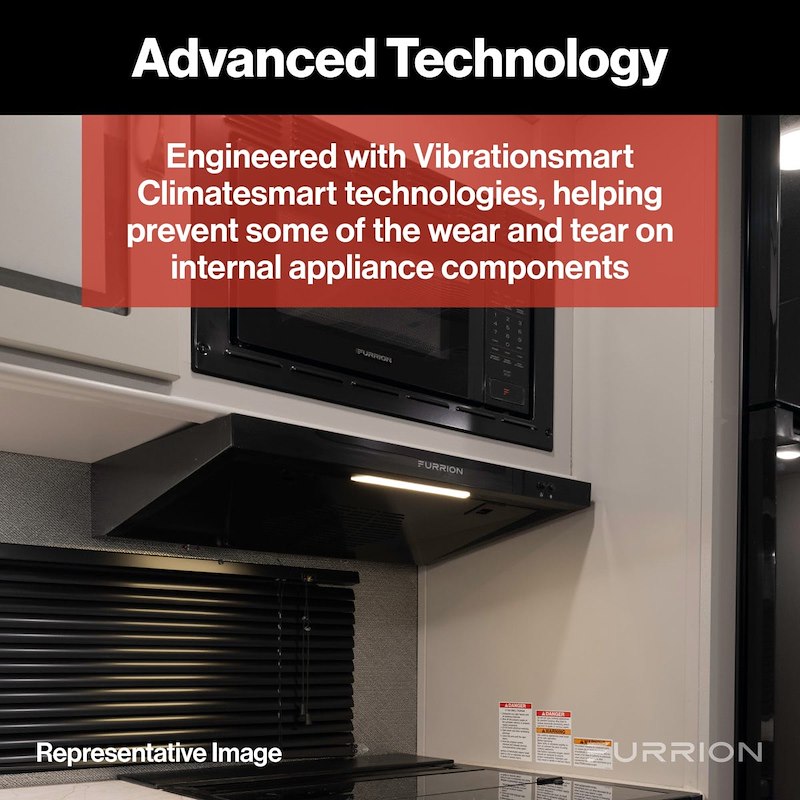

• ClimateSmart™ technology
• VibrationSmart™ technology
• Designed to withstand travel conditions
• Meets NFPA 1192 design requirements for specified flush-mount installation
• Suitable for marine applications
• Limited 1-year warranty

Specifications

• Brand: Furrion
• Manufacturer Part Number: FHO23SACR-SS
• Product Type: Stove Vent Hood / Range Hood
• Vent Type: Ducted
• Voltage: 12V DC
• Fan: Yes
• Fan Speeds: 1
• Maximum Airflow: 100 CFM
• Light: LED Down Light
• Filter: Removable / Washable Charcoal Filter
• Overall Width: 23-1/2"
• Overall Height: 4-3/4"
• Overall Depth: 17-3/4"
• Exhaust Duct Width: 10-11/16"
• Exhaust Duct Height: 3-3/4"
• Compatible Cabinet Depth: 12" to 18"
• Flush-Mount Cabinet Depth: 16-11/16"
• Material: Stainless Steel
• Body Color: Gray
• Faceplate: Stainless Steel
• Finish: Zinc Plated
• Marine Application: Yes
• Condition: Brand New
• Product: Genuine Furrion Product

What’s Included

• Furrion FHO23SACR-SS range hood
• Removable/washable charcoal filter
• Adjustable outlet
• Mounting hardware

Compatibility & Applications

Designed for compatible RV and marine kitchen installations with cabinet depths ranging from 12" to 18".

The range hood can be flush-mounted at a 16-11/16" cabinet depth using the adjustable outlet.

Important Fitment Information

Before ordering, verify the available cabinet space, duct location and electrical requirements for your installation.

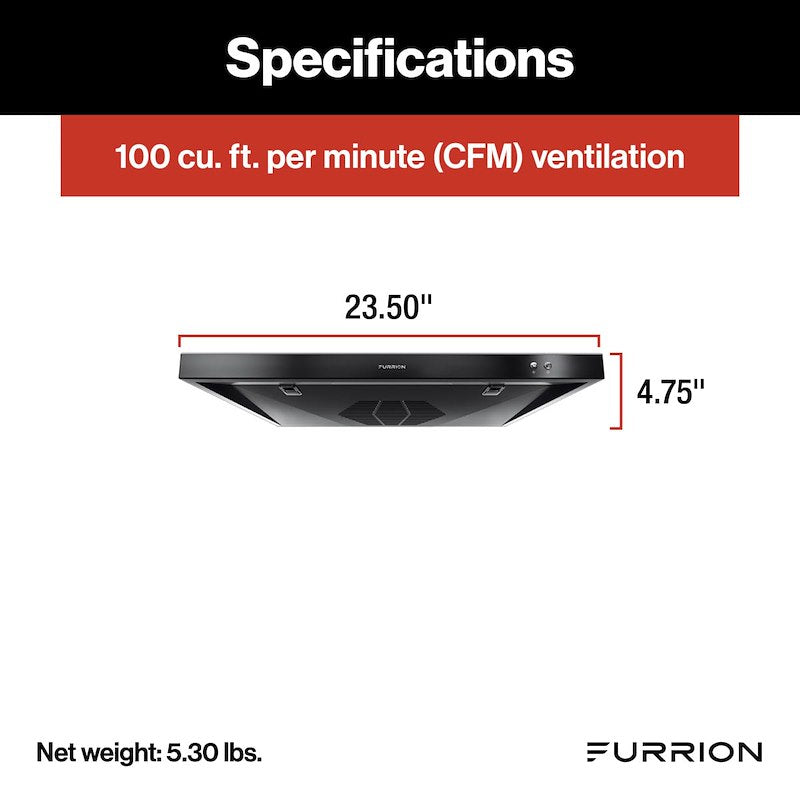

Overall dimensions:

• 23-1/2" Wide
• 4-3/4" High
• 17-3/4" Deep

Exhaust duct dimensions:

• 10-11/16" Wide
• 3-3/4" High

These overall dimensions should not automatically be treated as cabinet cutout dimensions.

Important

This is a ducted range hood designed to exhaust cooking fumes and odors outside the RV. Verify that your installation can accommodate the required exterior ducting and 12V DC electrical connection.

Warranty

Backed by a limited 1-year manufacturer warranty.
