Description
Upgrade the suspension and ride characteristics of your Mercedes-Benz Sprinter with the Fabtech K9007 Lift Kit. This brand new suspension system is designed for compatible Mercedes-Benz Sprinter 3500 4WD vans, providing approximately 1 to 1-1/2 inches of front and rear lift for increased ground clearance, improved larger-tire clearance, and enhanced suspension performance.
The front suspension uses high-quality cold-wound coil springs positioned around Bilstein struts, with billet aluminum upper and lower coil seats to securely locate the springs. This setup adds ride height while helping reduce body sway, particularly useful for RV conversions, camper vans, overland builds, and heavily equipped Sprinters.
At the rear, lift blocks and U-bolts provide the additional ride height, while the included rear performance shocks complement the upgraded front suspension.
Features
- Genuine Fabtech K9007 suspension lift kit
- Brand New
- Designed for compatible Mercedes-Benz Sprinter 3500 4WD vans
- Approximately 1 to 1-1/2 inch front lift
- Approximately 1 to 1-1/2 inch rear lift
- High-quality cold-wound front coil springs
- Billet aluminum upper and lower front coil spring seats
- Includes Bilstein front struts
- Includes rear performance shock absorbers
- Rear lift blocks and U-bolts
- Helps increase ground clearance
- Provides additional clearance for larger tires
- Helps reduce body sway on heavily equipped vans
- Retains factory suspension travel and alignment capability
- Well suited for RV, camper van, cargo and overland applications
- Black suspension components
- Limited lifetime warranty
Specifications
- Manufacturer Part Number: K9007
- Product Type: Suspension Lift Kit
- Front Lift: 1 to 1-1/2 Inch
- Rear Lift: 1 to 1-1/2 Inch
- Front Lift Type: Coil Spring / Coil Spring Spacer System
- Rear Lift Type: Lift Blocks and U-Bolts
- Front Shocks/Struts: Bilstein
- Rear Shocks: Performance Shock Absorbers
- Shock Type: Hydraulic
- Maximum Tire Size: 32 x 11.00
- Minimum Wheel Diameter: 16 Inch
- Wheel Backspacing: 2.16 to 8 Inches
- Component Color: Black
- Application: Vehicle Specific

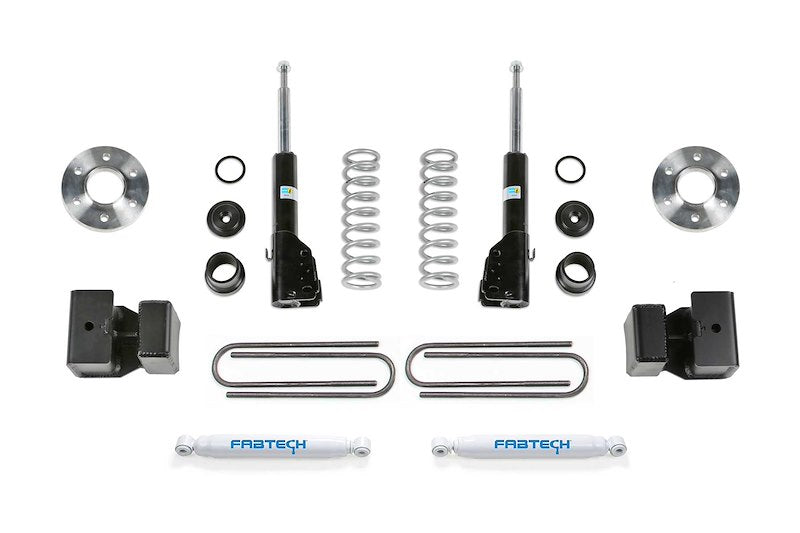

What's Included
- Front cold-wound coil springs
- Front Bilstein struts
- Billet aluminum upper and lower coil spring seats
- Rear lift blocks
- Rear U-bolts
- Rear performance shock absorbers
- Front wheel spacer kit
- Installation hardware
Vehicle Fitment
Designed for the following Mercedes-Benz Sprinter 3500 Four Wheel Drive applications:
2015–2022 Mercedes-Benz Sprinter 3500
- 2015 Mercedes-Benz Sprinter 3500 – Four Wheel Drive
- 2016 Mercedes-Benz Sprinter 3500 – Four Wheel Drive
- 2017 Mercedes-Benz Sprinter 3500 – Four Wheel Drive
- 2018 Mercedes-Benz Sprinter 3500 – Four Wheel Drive
- 2019 Mercedes-Benz Sprinter 3500 – Four Wheel Drive
- 2020 Mercedes-Benz Sprinter 3500 – Four Wheel Drive
- 2021 Mercedes-Benz Sprinter 3500 – Four Wheel Drive
- 2022 Mercedes-Benz Sprinter 3500 – Four Wheel Drive
Applications
The Fabtech K9007 is particularly well suited for Sprinter vans used for:
- RV and camper van conversions
- Overland and adventure builds
- Heavy interior build-outs
- Cargo hauling
- Off-highway travel
- Applications requiring increased ground clearance
- Larger tire installations
The upgraded front coil spring system can be especially beneficial on converted or heavily equipped Sprinter vans where additional suspension support and reduced body sway are desirable.
Installation Notes
- Vehicle-specific suspension system
- Designed for compatible Sprinter 3500 4WD applications
- Professional suspension installation is recommended
- A coil spring compressor and appropriate suspension tools may be required
- Verify wheel and tire clearance before installation
- Check brake lines, ABS wiring and surrounding components for proper clearance
- Suspension alignment should be checked following installation
- Fabtech auxiliary front shock mounts with Dirt Logic 2.25 shocks can be used as an additional suspension upgrade where applicable
- Always verify your vehicle's exact year, model, drivetrain and suspension configuration before ordering
Fitment Notice
Supplier application data lists this kit for 2015–2022 Mercedes-Benz Sprinter 3500 Four Wheel Drive models. Vehicle configurations can vary, so please verify your exact vehicle and suspension configuration before ordering.
Warranty
- Limited Lifetime Warranty
