Description

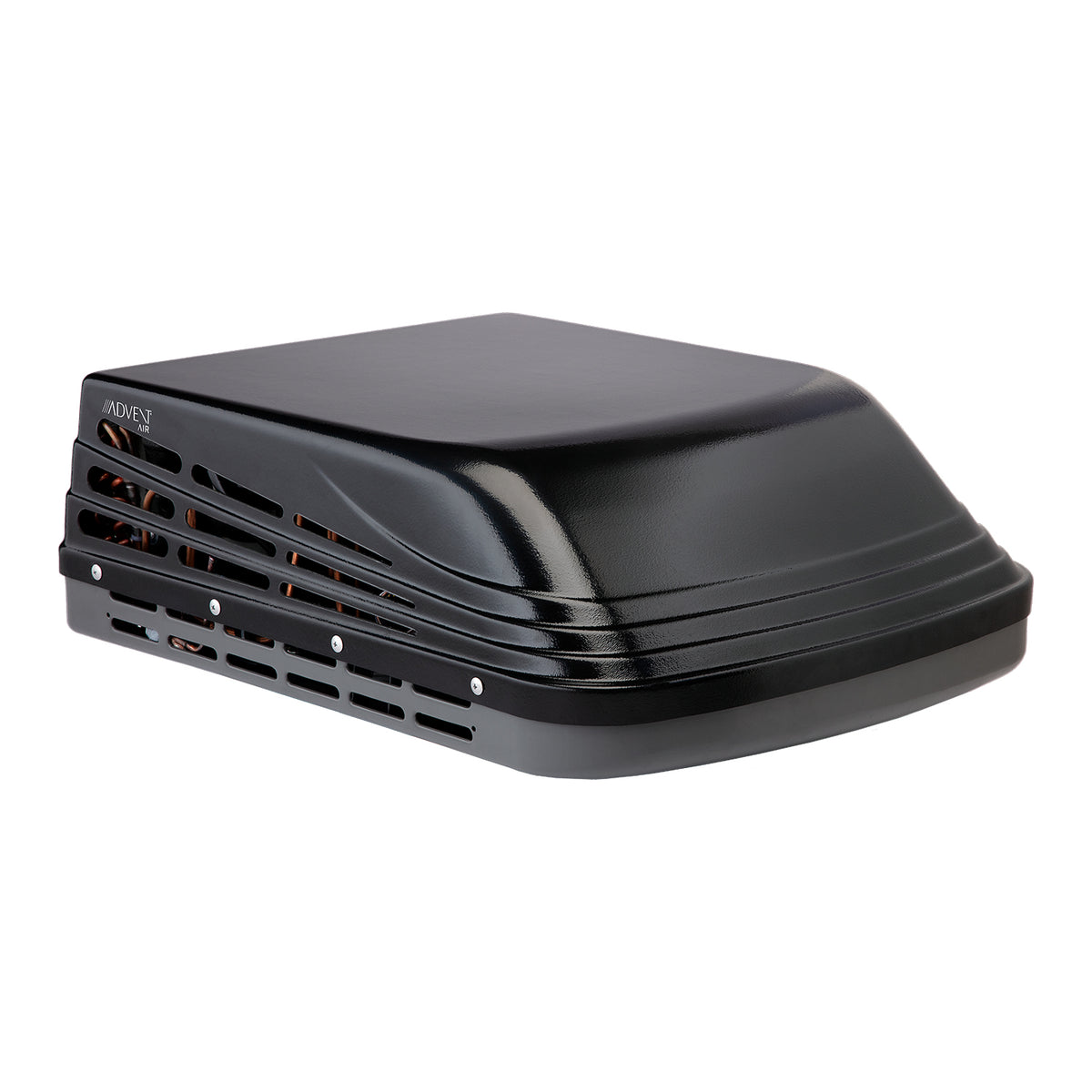

The Advent Air ACR135LPBW rooftop RV air conditioner delivers 13,500 BTU of cooling in an ultra-low-profile design that measures just 10 inches high. Designed for standard RV rooftop vent openings, it combines efficient refrigerant cooling with a streamlined housing that helps minimize rooftop height and improve aerodynamics.
Operating on 115V AC, this rooftop unit features three fan speeds, R32 refrigerant and a durable black exterior finish designed to resist UV exposure and weathering. It is intended for non-ducted RV air-conditioning systems, with an optional heat strip available for compatible installations.
Features
- 13,500 BTU cooling capacity
- Ultra-low-profile 10" rooftop design
- Designed for standard RV roof vent openings
- Non-ducted air-conditioning application
- Three fan speeds
- 115V AC operation
- R32 refrigerant
- Water seal gasket included
- Refrigerant cooling system
- Designed for maximum airflow and efficiency
- Reduced compressor noise for quieter operation
- Energy-efficient operation
- Black exterior finish
- Exterior designed to resist UV damage and weathering
- Optional heat strip available
- Rooftop upper-unit configuration
- Limited 2-year warranty
Specifications
- Brand: Advent Air
- Manufacturer: ASA Electronics
- Manufacturer Part Number: ACR135LPBW
- Product Type: Rooftop RV Air Conditioner
- Cooling Capacity: 13,500 BTU
- System Type: Non-Ducted
- Function: Air Conditioning Only
- Cooling Type: Refrigerant
- Refrigerant: R32
- Voltage: 115V AC
- Compressor Draw: 10.2A
- Fan Speeds: 3
- Roof Opening: 14-1/4" x 14-1/4"
- Length: 31"
- Width: 25"
- Height: 10"
- Weight: 66 lb
- Color: Black
- Condensate Pump: No
- Remote Control: No
- Optional Heat Strip: Available
- Marine Application: No
- Condition: Brand New
- Product: Genuine Advent Air Product
What’s Included
- Advent Air ACR135LPBW rooftop air conditioner
- Water seal gasket
- R32 refrigerant
Compatibility & Applications
Designed for compatible RV rooftop installations using a standard approximately 14" x 14" roof opening, including specified 14-1/4" x 14-1/4" vent openings.
This model is intended for non-ducted RV air-conditioning systems and can be paired with compatible Advent Air controls and ceiling components.
Important Fitment Information
Before ordering, verify your RV's:
- Roof opening dimensions
- Roof construction and available mounting clearance
- 115V AC electrical system
- Non-ducted air-conditioning configuration
- Required ceiling assembly and controls
- Available rooftop clearance for the 31" x 25" housing
The unit measures 10" high and weighs approximately 66 lb.
Important
This is the rooftop upper air-conditioner unit. A ceiling assembly and thermostat/control system are not specified as included and may be required separately for installation and operation.
The unit provides air conditioning only. A compatible heat strip is available separately where additional heating functionality is desired.
Warranty
Backed by a limited 2-year manufacturer warranty.
