Descripción

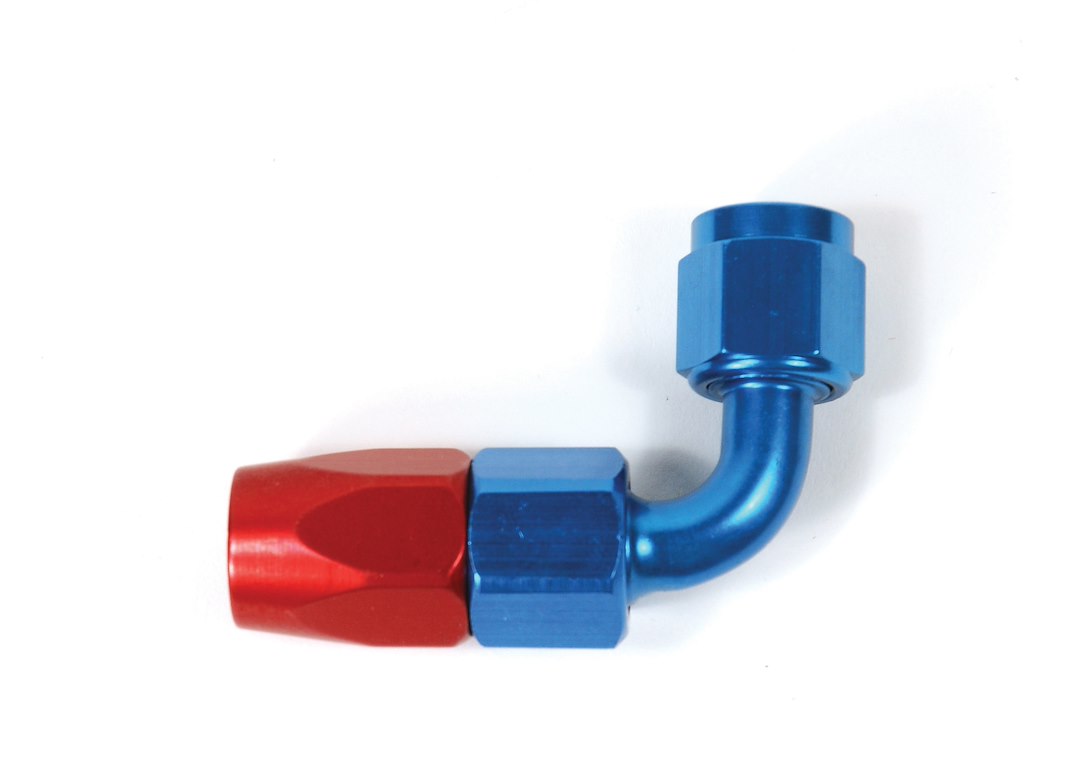

Position the red-and-blue elbow after installation using its FKM-sealed swivel. Both ends use -10 AN sizing around a 90-degree turn.
Specifications
| End Type1 | Hose End |
|---|---|
| End Size1 | -10 AN (5/8 Inch) |
| End Type2 | Female Thread |
| End Size2 | -10 AN (5/8 Inch) |
| Fitting Style | Threaded Nipple, Full Swivel |
| Fitting Angle | 90 Degree |
| Finish | Anodized |
| Color | Red/ Blue |
| Material | Aluminum |
| Quantity | Single |
| Includes O-Ring | Yes |
Features
- Manufactured From Lightweight 6061 Aluminum And Are Reusable
- Compatible With All AN Adapter Fittings
- 37 Degree Angled Sealing Surface Creates A Leak Proof Seal
- FKM O-Ring Seal Allows For 360 Degree Rotation Which Provides Adjustability After Installation
- Anodized Hose Ends Creates A Corrosion Resistant Finish
- Elbow Ends Are Manufactured From One Piece Billet Tube Construction
- Limited 1 Year Warranty
Design details
- Full-flow family uses a 37-degree sealing face and FKM O-ring for up to 360-degree adjustment during and after installation. Compatible with most manufacturers’ hoses and adapters; anodizing provides corrosion resistance.
Application details
- SpeedFX 511090 combines a 90-degree hose-end layout with red/blue finish and -10 AN (5/8-inch) size.
