Descripción
The H7086 extends to 29.83 inches with a cross-pin-to-eyelet mounting arrangement.
Specifications
| Type | Hydraulic |
|---|---|
| With Coil Spring | No |
| Internal Design | Twin Tube |
| Adjustable Valving | No |
| Extended Length (IN) | 29.83 Inch |
| Compressed Length (IN) | 17.32 Inch |
| Upper Mounting Style | Cross Pin |
| Lower Mounting Style | Eyelet |
| Body Color | White |
| Quantity | Single |
| Rod Diameter (IN) | 5/8 Inch |
| Valving Type | Multi Stage Velocity Sensitive Valving |
| Rod Material | Steel |
| Body Material | Steel |
| With Reservoir | No |
| Includes Dust Shield | No |
| Includes Hardware | No |
| Includes Boot | Yes |
| Estimated Install Time (Hours) | 0.5 |
Features
- Hydraulic Action. Leak Proof Seal Prevents Hydraulic Fluid From Passing Around Piston Head For A Consistent And Reliable Ride
- Multi Stage Velocity Sensitive Valving
- Twin Tube Construction. DOM Tubing Reduces Internal Wear For Longer Product Life
- Bonded Iron Piston For Durability And Longer Shock Life
- Chromed Piston Rod Features Micro Polished Shaft For Improved Product Life And Performance
- Orifice Disk For Axle Control In Any Condition
- Red Polyurethane Bushings
- Limited Lifetime Warranty
Details
- Recommended for multiple-shock installations and mild to moderate off-road use. The hydraulic damper controls spring compression and rebound, managing stored spring energy while the springs absorb bumps and suspension loads.
- Performance-specific internals respond to road and trail conditions at varying speeds. Velocity-sensitive resistance supports handling, stability and comfort over rough or smooth terrain while helping keep tires in contact with the surface.

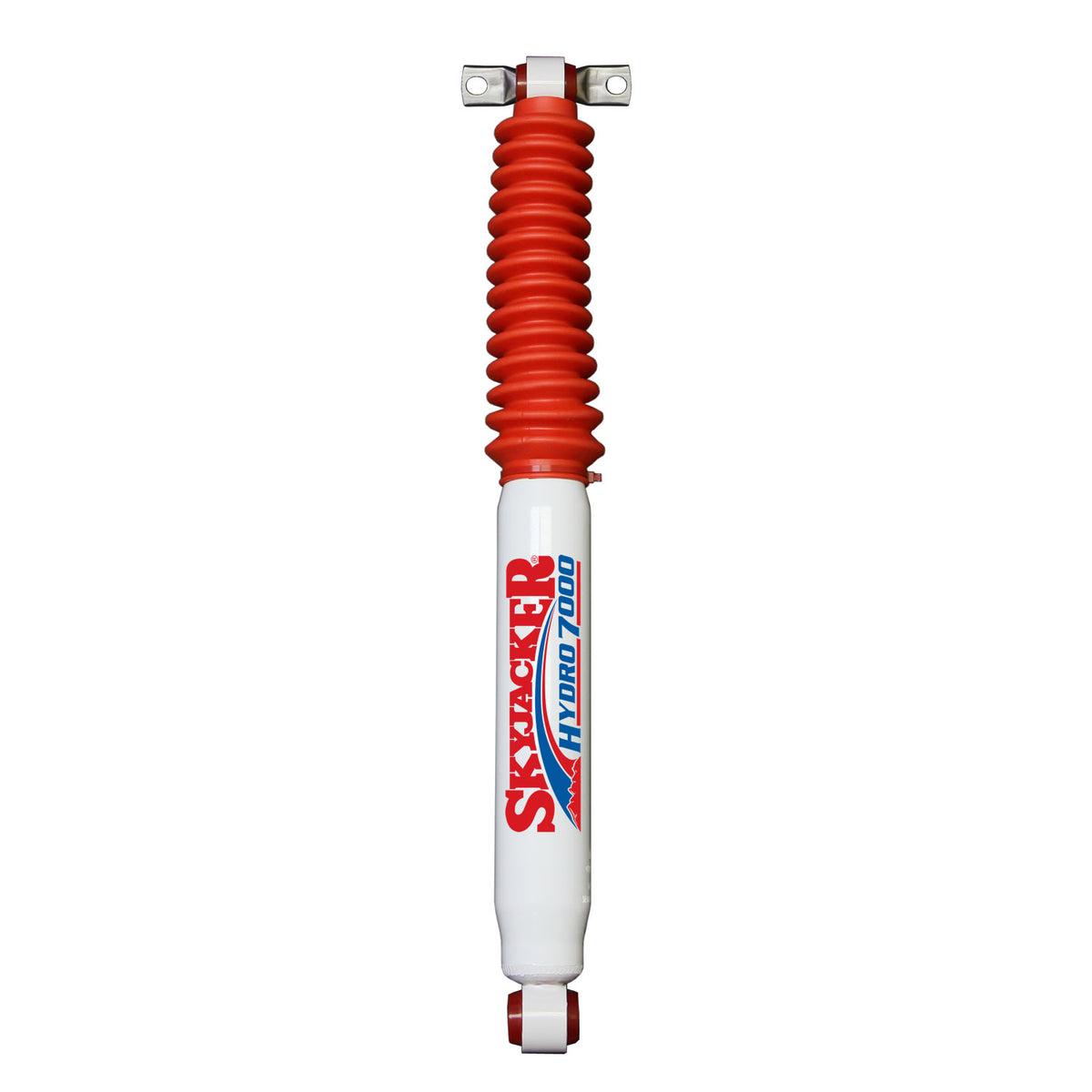

- The H7086 hydraulic damper comes in Hydro 7000 configuration with a red boot.
- H7086 is delivered with a red boot.
