Descripción
Tubular radius arms correct geometry in the four-inch Super Duty lift. Their inward shape increases room for oversized tires.
Specifications
| Front Lift Amount (IN) | 4 Inch |
|---|---|
| Rear Lift Amount (IN) | 4 Inch |
| Maximum Tire Size | 37 x 12.50 |
| Front Lift Type | Coil Spring |
| Rear Lift Type | Lift Blocks And U-Bolts |
| Shock Type | Hydraulic |
| Wheel Backspacing (IN) | 6 |
| Minimum Wheel Diameter | 17 |
| Wheel Offset (MM) | 25 |
| Shocks | With Front And Rear Falcon Remote Reservoir Dampening Adjustable Shock Absorbers In Kit |
| Color | Black Components |
Features

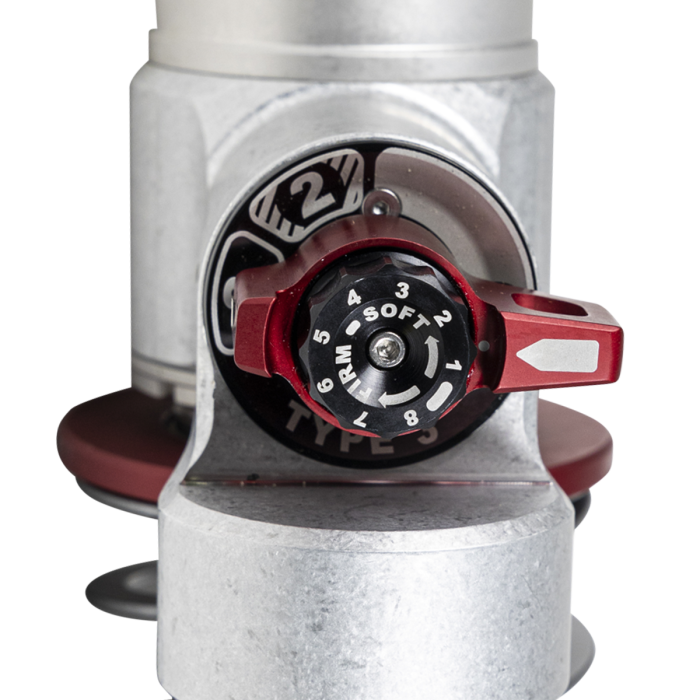

- 3.3 Fast Adjust Dampers Offer A Wide Range Of Adjustability For Specific Terrain And Handling Characteristics With Two Separate Knobs To Tune To Your Preference
- 3-Position Fast Adjust Knob For Soft, Custom, And Firm Compression, Soft Mode Allows A Partial Bypass Of The Main Piston For A Softer Ride
- 8-Position Micro Adjust Dial Offers Refined Damping Adjustments
- Reservoir Design Increases Nitrogen To Oil Ratio For Consistent Damping Over Wide Temperature Ranges
- Hard Anodized Large Bore 6061-T6 Aluminum Shock Body For Impact And Corrosion Resistance As Well As Increased Oil Volume For Consistent Performance
- DOM Tube Steel Upper Control Arms With Proprietary Heavy-Duty High-Angle Ball Joint
- Heavy-Duty Fabricated Steel Components Utilizing 3/16 Inch And 1/4 Inch Steel Plate
- Full-Coverage Differential Skid Plate Constructed From 3/16 Inch Steel Plate
- Features HD Alignment Cam Bolts For Proper Front-End Alignment
- Limited 1 Year Warranty
Design details

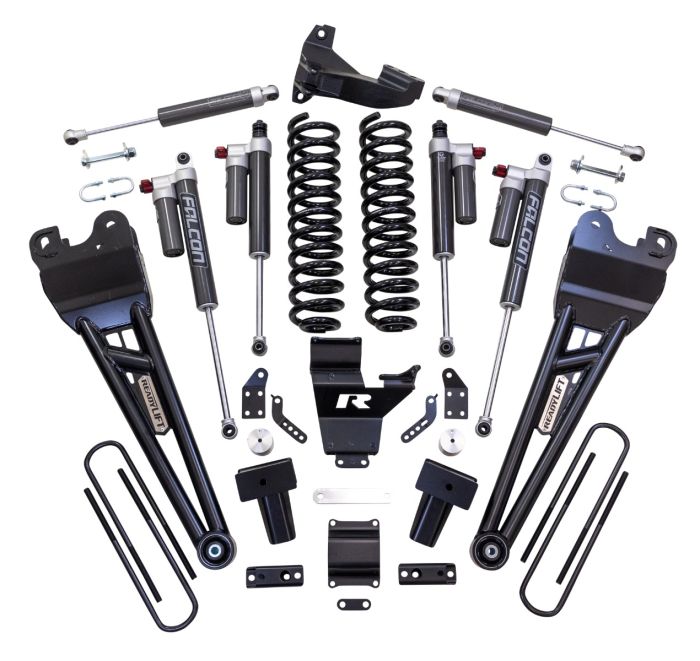

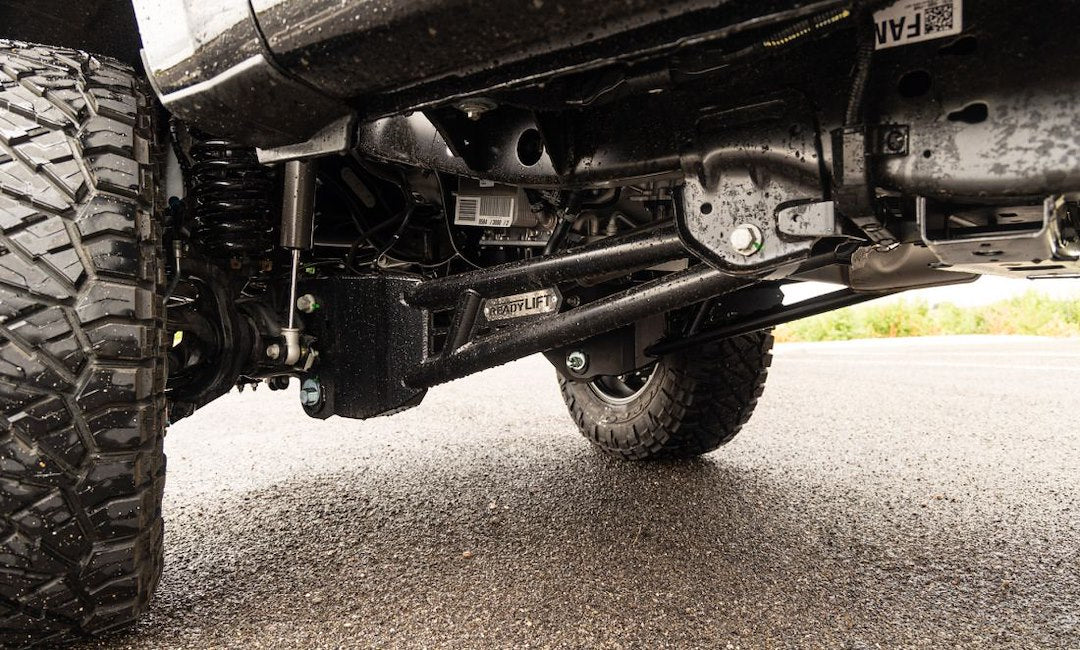

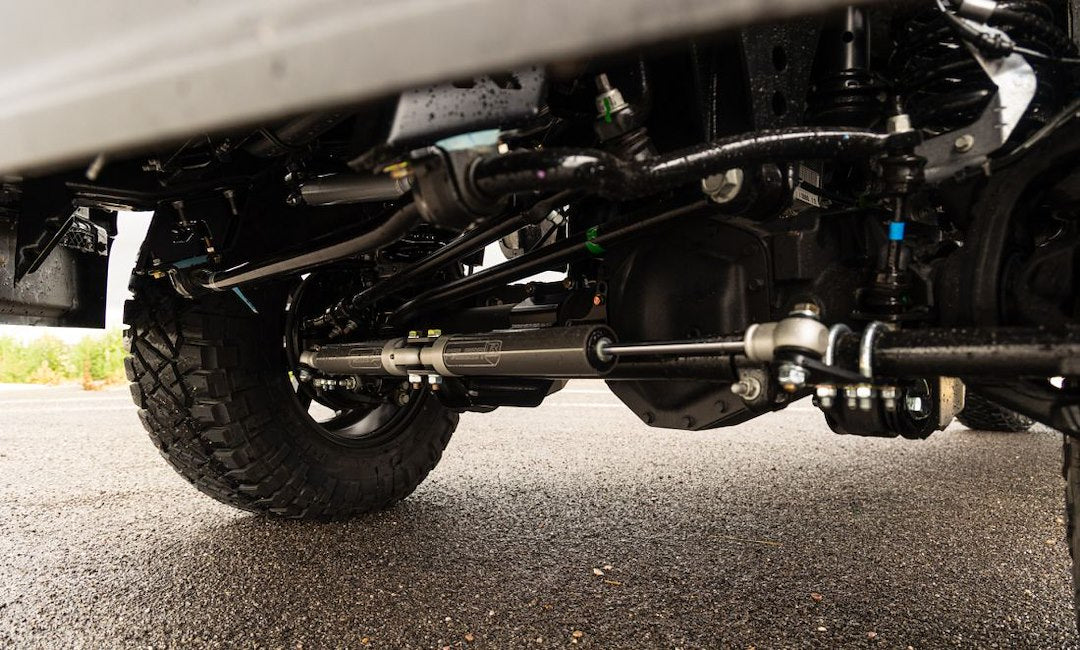

- The four-inch Super Duty coil-spring kit includes tubular radius arms, a Falcon dual steering stabilizer and Falcon 3.3 piggyback shocks. It increases tire clearance and ground clearance while preserving everyday usability, with clearance for tires up to 37 inches. Heavy-duty radius arms correct lifted suspension geometry; their inward shape provides extra tire clearance and their direct bolt-on design eases installation. Falcon steering dampers improve solid-front-axle stability with oversized tires, reduce bump steer and improve steering feel, maneuverability, comfort and control on road and difficult terrain.
Application details
- ReadyLift 43-23440 is a 4-inch MAX3.3 coil-spring lift kit with a hydraulic suspension configuration and Falcon components.
