Lewmar 6671011108-138 V-Series Vertical Windlass 12V with Gypsy

Ahorrar $1,208.00
LewmarSKU: 06-5015

Precio:
Precio de venta$3,539.00 Precio habitual$4,747.00

Gastos de envío calculados en la caja

Stock:
Disponibles (12 unidades), listas para ser enviadas

Descripción

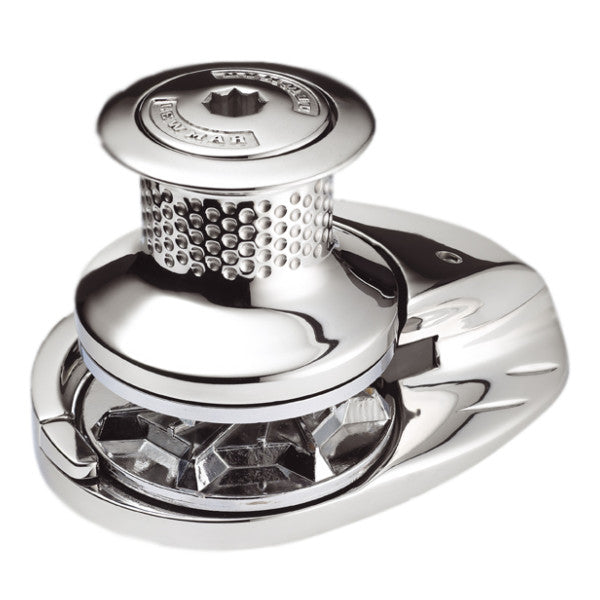

Take on demanding anchoring conditions with the Lewmar 6671011108-138 V-Series Vertical Windlass. This brand new premium 12-volt electric windlass combines robust stainless steel construction with powerful performance, making it an excellent choice for cruising boats, yachts, and offshore vessels.

Designed as part of Lewmar's renowned V-Series, this vertical windlass delivers up to 1,653 pounds of maximum pulling force, a 414-pound working load limit, and a fast 105 feet per minute retrieval speed. The integrated rope/chain gypsy accommodates multiple chain standards, while the cone clutch system provides smooth, controlled anchor deployment and retrieval.

Engineered for durability in harsh marine environments, the V-Series features a stainless steel deck unit, worm gearbox, W.A.R.P. drum technology, and Lewmar's Fall Safe Anchor Lock system for dependable anchoring performance season after season.

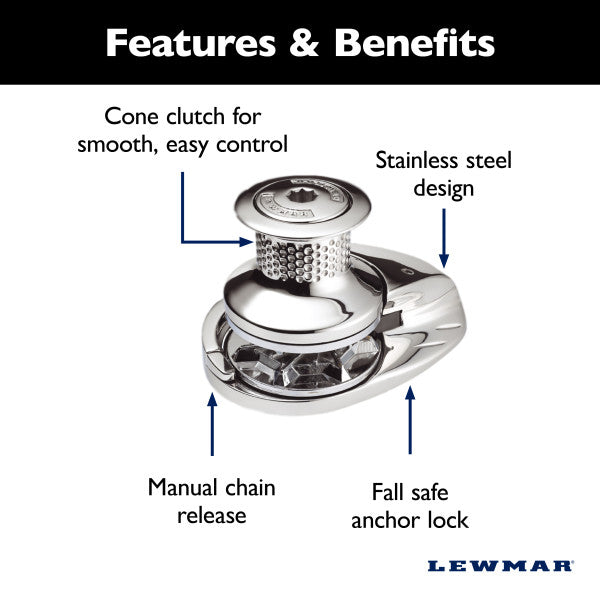

Features

  • Genuine Lewmar 6671011108-138 OEM product
  • Brand new
  • V-Series vertical electric windlass
  • Heavy-duty stainless steel deck unit
  • Powerful 700-watt motor
  • Rope and chain gypsy
  • Cone clutch for smooth anchor control
  • W.A.R.P. drum technology
  • Fall Safe Anchor Lock system
  • Heavy-duty worm gearbox
  • Fast anchor retrieval
  • Corrosion-resistant marine-grade construction
  • Optional manual override gearbox compatible
  • Designed for demanding marine environments

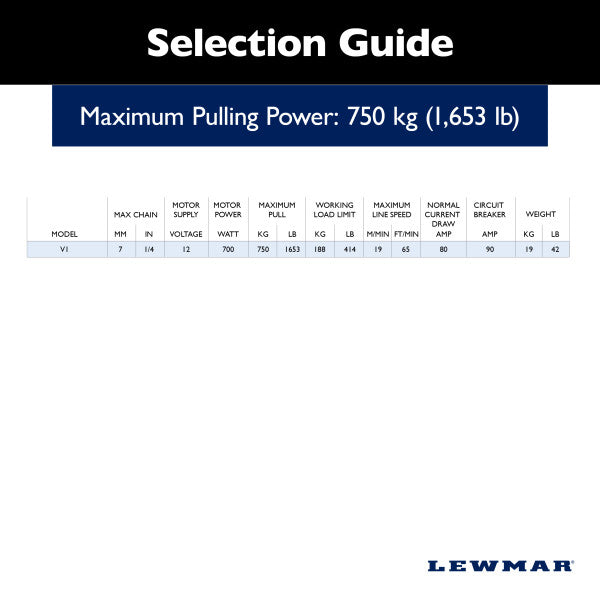

Specifications

  • Manufacturer Part Number: 6671011108-138
  • Series: V-Series
  • Mount Type: Vertical
  • Voltage: 12 Volt DC
  • Motor Power: 700 Watts
  • Current Draw: 80 Amps
  • Maximum Pull: 1,653 Pounds
  • Working Load Limit: 414 Pounds
  • Maximum Retrieval Speed: 105 Feet Per Minute
  • Construction: Stainless Steel

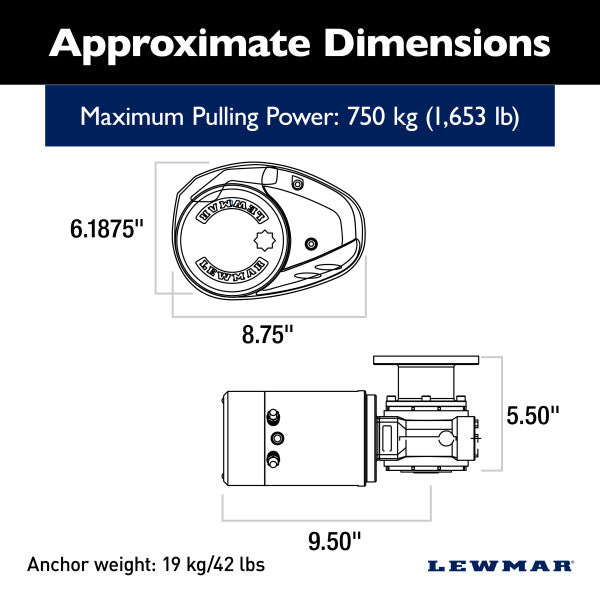

  • Overall Size: 8-3/4 Inches W × 6-5/8 Inches H
  • Chain Compatibility:
    • 10 mm DIN 766
    • 3/8 Inch Campbell S4
    • 5/16 Inch G40

Includes

  • Stainless steel deck unit
  • Rope/chain gypsy
  • Motor gearbox
  • Rocker switch
  • Circuit breaker
  • Contactor

Compatibility

Designed for compatible marine vessels requiring a 12-volt vertical electric windlass using supported rope and chain combinations.

Compatible with:

  • 10 mm DIN 766 chain
  • 3/8 Inch Campbell S4 chain
  • 5/16 Inch G40 chain

Important: Verify your boat's anchoring system, deck mounting dimensions, electrical system, chain specification, and manufacturer part number before ordering to ensure proper compatibility.

Warranty

  • Limited 3-Year Manufacturer Warranty
