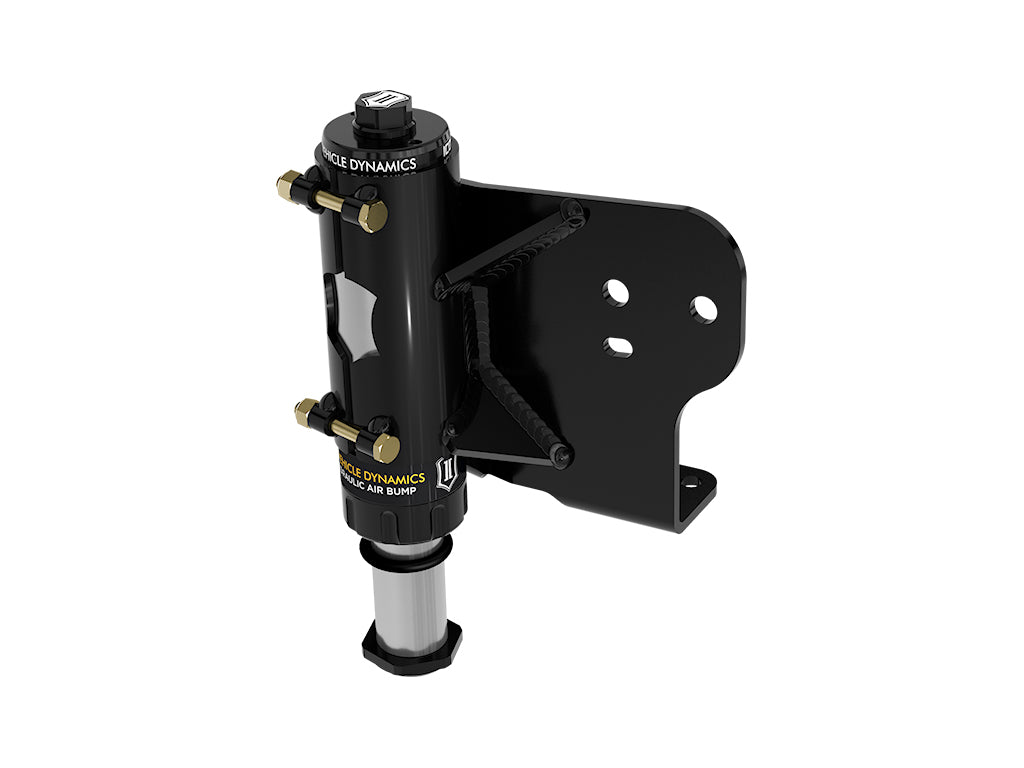

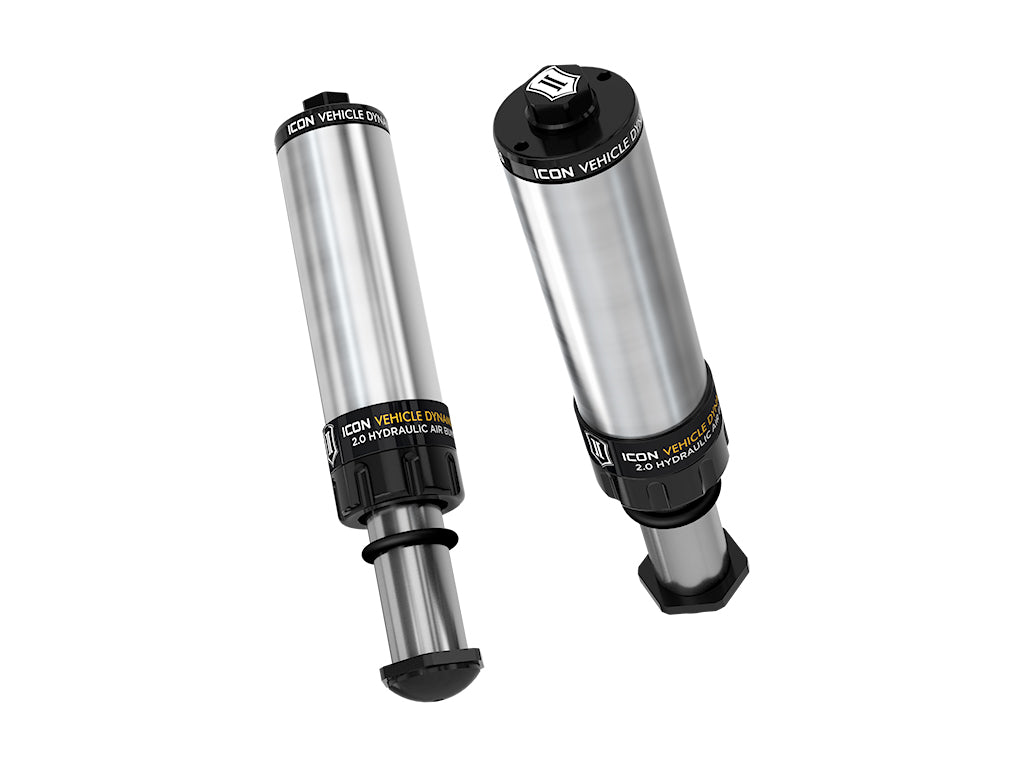

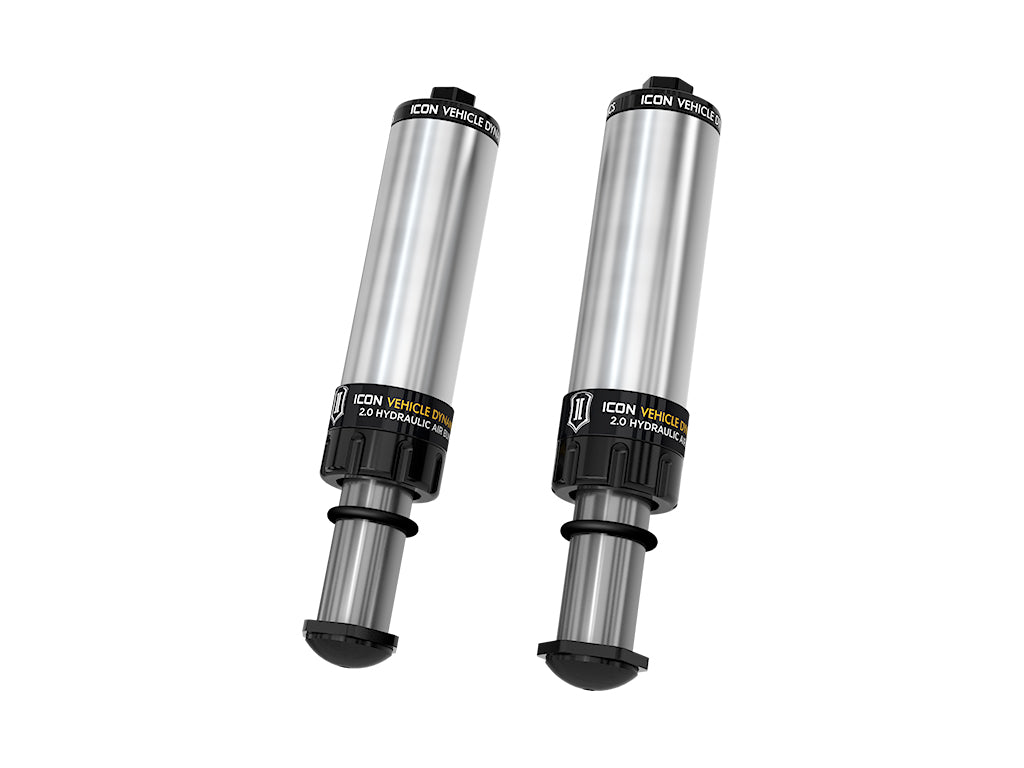

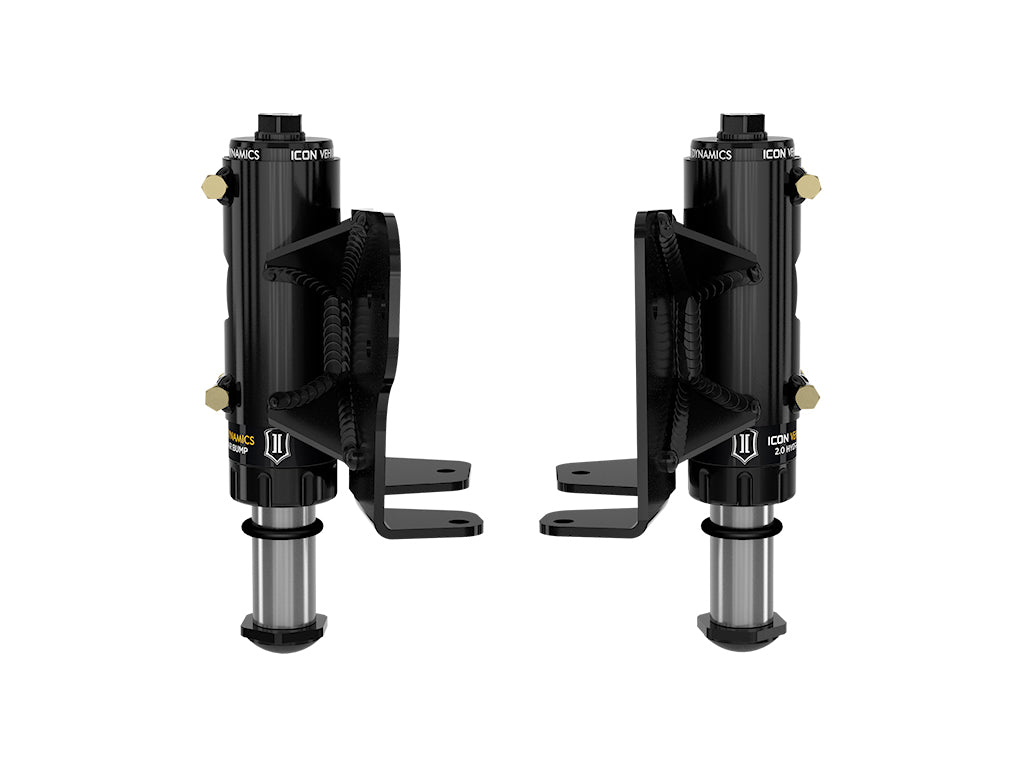

Icon Vehicle Dynamics 56111 Rear Hydraulic Bump Stop Kit

Hydraulic rear bump stops absorb hard suspension impacts more progressively and help reduce rear-end kick. The bolt-on system fits the original Tundra bump-stop locations.

Features

• Heavy-Duty 1-1/4 Inch CNC Machined Nitro Steel Shaft
• Multi Stage CAD Plated Body For Maximum Corrosion Resistance
• Double Sealed High Pressure Schrader Valve
• Replaceable Noise Reducing Striker Pad
• Fully Reversible To Factory Configuration With No Bed Cutting Required
• 2.5 Inch Travel Bump Stop Reduces Rear End 'Kick' And Improves Overall Performance
• Position And Velocity Sensitive Technology Exponentially Increases Bottom-Out Resistance
• Vehicle Specific Bump Stop Tune To Provide Smooth Engagement And Best Ride Quality
• Direct Bolt-In To OEM Bump Stop Location Makes For An Easy And Straightforward Install
• Limited Lifetime Warranty

Construction and application

• For 2022 to 2023 Toyota Tundra; OEM replacement hydraulic rear bump-stop system.
• Force increases with shaft speed and compression position without negatively affecting articulation.
• Digressive rebound piston valving controls energy release for predictable handling.
• No major cutting, welding or fabrication required; reversible to factory configuration.

Additional product details

The 56111 kit uses round hydraulic rear bump stops for 22-up Tundra applications.
