Descripción

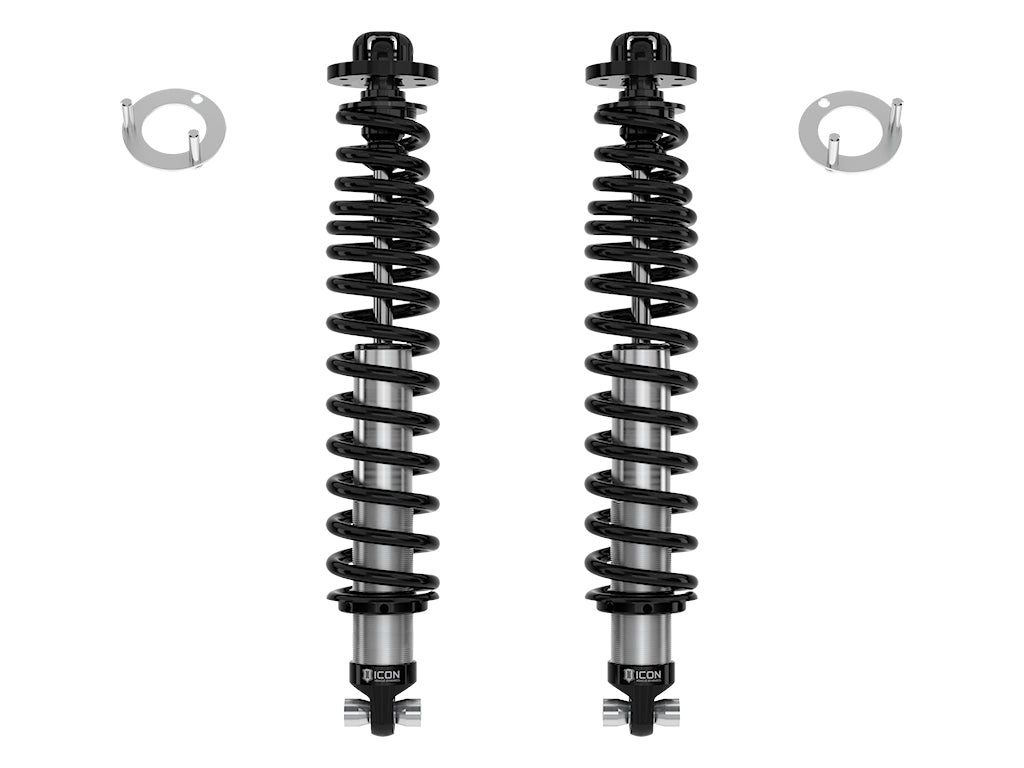

Height adjustment allows these internal-reservoir rear coilovers to suit equipped 2021–2023 four-door Ford Broncos while retaining fixed damping valving.
The internal-reservoir rear coilovers fit 2021–2023 four-door Ford Broncos. Rear lift adjusts from 2 to 3 inches on non-Sasquatch models and 1-1/4 to 2-1/4 inches over stock on Sasquatch models. The Non Adjustable Valving specification concerns damping; it does not prevent ride-height adjustment.
A shaft-up mounting orientation and progressive dual-rate springs accommodate added gear. The 2-1/2-inch shock body and vehicle-specific length and valving provide increased travel. Pairing with ICON 2.5 Series front coilovers balances front and rear control.
Manufacturer features
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Increased Wheel Travel Up To 14 Inch And Ride Quality Over Stock
- Vehicle Specific Tuned For Superior Shock Damping And Control

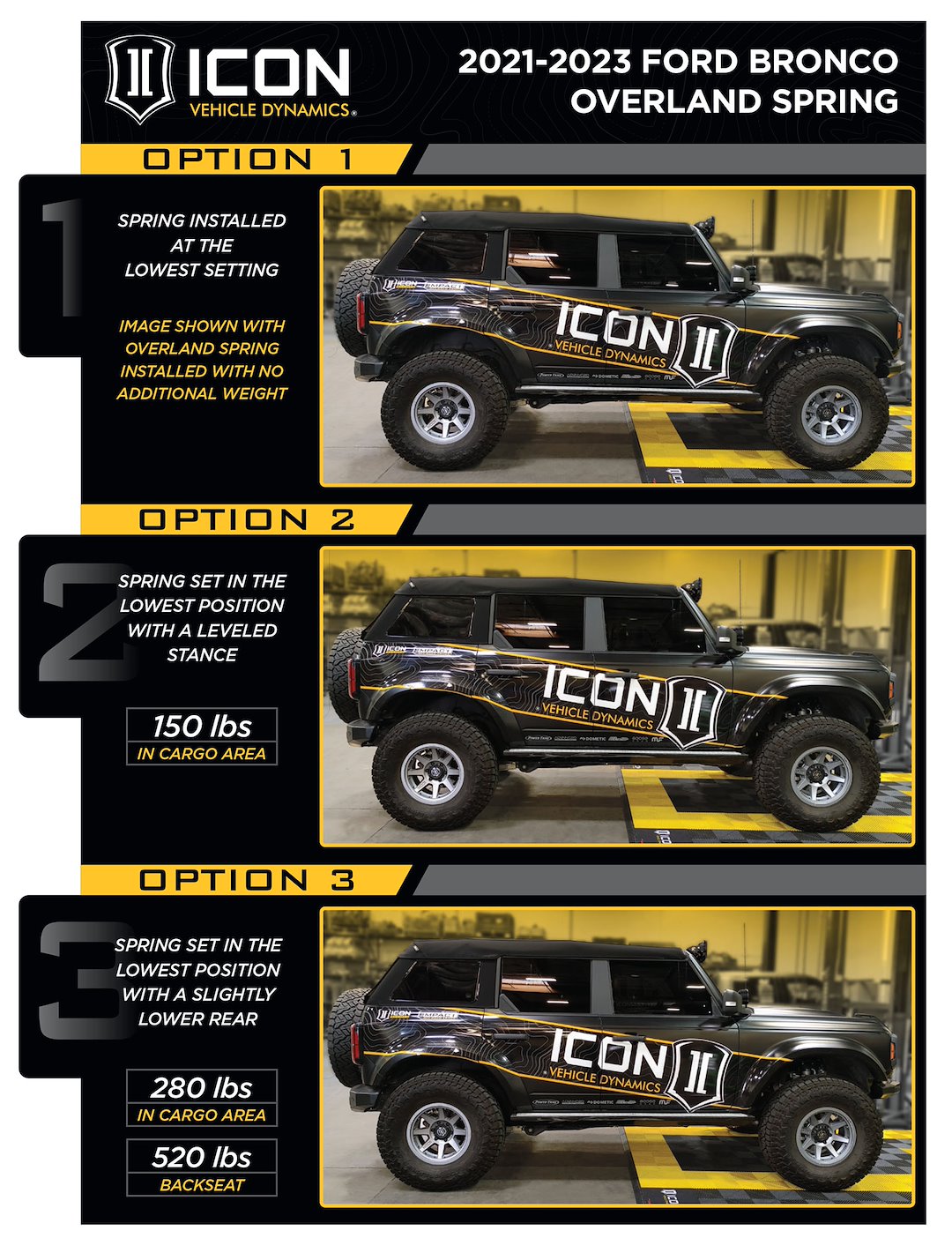

- Adjustable Up To 2 To 3 Inch Of Rear Lift Height On Non-Sasquatch Or 1-1/4 Inch To 2-1/4 Inch Of Rear Lift On Sasquatch Broncos
- Unique ICON Engineered Dual Rate Coil Springs With Increased Spring Rates For Heavier Equipped Broncos
- Corrosion Resistant CAD Plated Shock Bodies With 7/8 Inch Diameter Shaft
- FK Rod End Bearings For Extended Longevity And Minimal Deflection
- Fully Rebuildable And Re-Tunable
- 100 Percent Bolt-On: No Drilling, Cutting Or Welding Necessary For Installation
- Limited 1 Year Warranty
Technical details
| Valving Type | Non Adjustable Valving |
|---|---|
| Shock Type | Gas Charged |
| Upper Mounting Type | Strut |
| Lower Mounting type | Cross Pin |
| Front/Rear Drop (IN) | 1-1/4 To 3 Inch Lift |
| Extended Height (IN) | OEM |
| Compressed Height (IN) | OEM |
| Shock Body Color | Black/ Silver |
| Shock Body Material | Aluminum |
| Quantity | Set Of 2 |
| Spring Style | Pigtail Spring |
| Spring Color | Black |
| Spring Material | Steel |
| Includes Mounting Hardware | No |
