Descripción

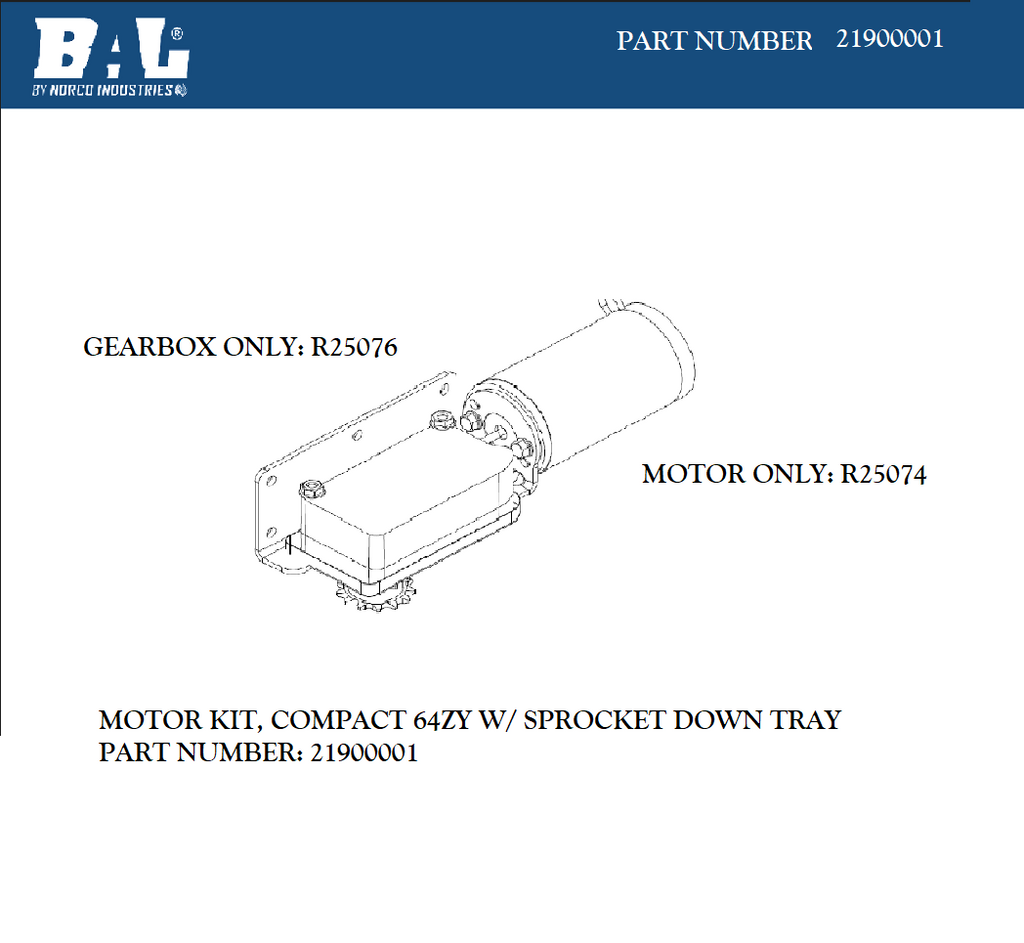

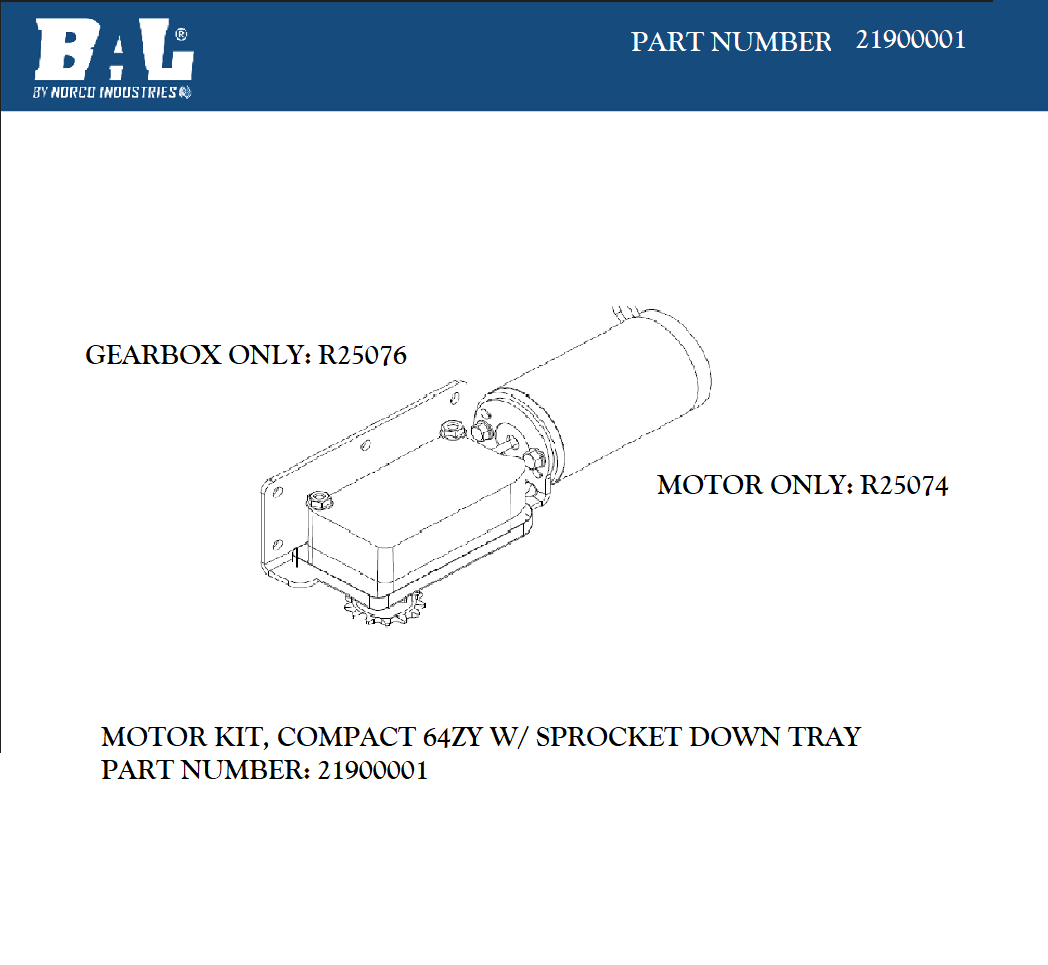

The BAL RV 21900001 slide-out motor kit is a replacement motor assembly designed for compatible BAL Accu-Slide cable-driven room systems. This compact standard-torque motor operates on 12V DC and is rated at 14 amps and 36 watts.
Designed as a replacement component for the Accu-Slide system, the compact motor is mounted separately from the gearbox and uses the system's gearbox, motor mount and flex drive shaft configuration. This version is supplied with a sprocket-up tray and wiring harness connector.
Features
- Replacement motor kit for BAL Accu-Slide systems
- Designed for Accu-Slide cable-driven room systems
- Compact standard-torque motor
- 12V DC operation
- 14-amp rating
- 36-watt rating
- Motor mounts separately from the gearbox
- Sprocket-up tray configuration
- Wiring harness connector included
- Designed for RV slide-out applications
- Made in the USA
Specifications
- Brand: BAL RV
- Manufacturer Part Number: 21900001
- Product Type: Slide-Out Motor Kit
- Compatibility: BAL Accu-Slide Cable-Driven Room System
- Motor Type: Compact Standard Torque
- Motor: 64ZY
- Voltage: 12V
- Amperage: 14A
- Power: 36W
- Wiring Harness Connector: Yes
- Sprocket Tray Configuration: Sprocket Up
- Condition: Brand New
- Product: Genuine BAL RV Replacement Part
Compatibility
Designed as a replacement motor kit for compatible BAL Accu-Slide cable-driven RV slide-out systems.
BAL uses multiple compact motor assemblies that can appear similar, so replacement selection should be based on the existing system configuration and part number rather than appearance alone.
Important Fitment Information
Before ordering, verify your existing Accu-Slide system requires:
- BAL RV part 21900001
- Compact standard-torque motor
- 12V electrical operation
- 14A motor rating
- Sprocket-up tray configuration
Matching the correct motor and drive configuration is important because multiple Accu-Slide compact motor assemblies are available.
Important
This product is intended as a replacement motor kit for the Accu-Slide cable-driven room system. It is not a complete slide-out mechanism.
Warranty
No manufacturer warranty is specified.
